Description
* Carry high-performance industrial Cortex-A7 processor, main frequency can be up to 1.2GHz
* Improve data processing efficiency greatly

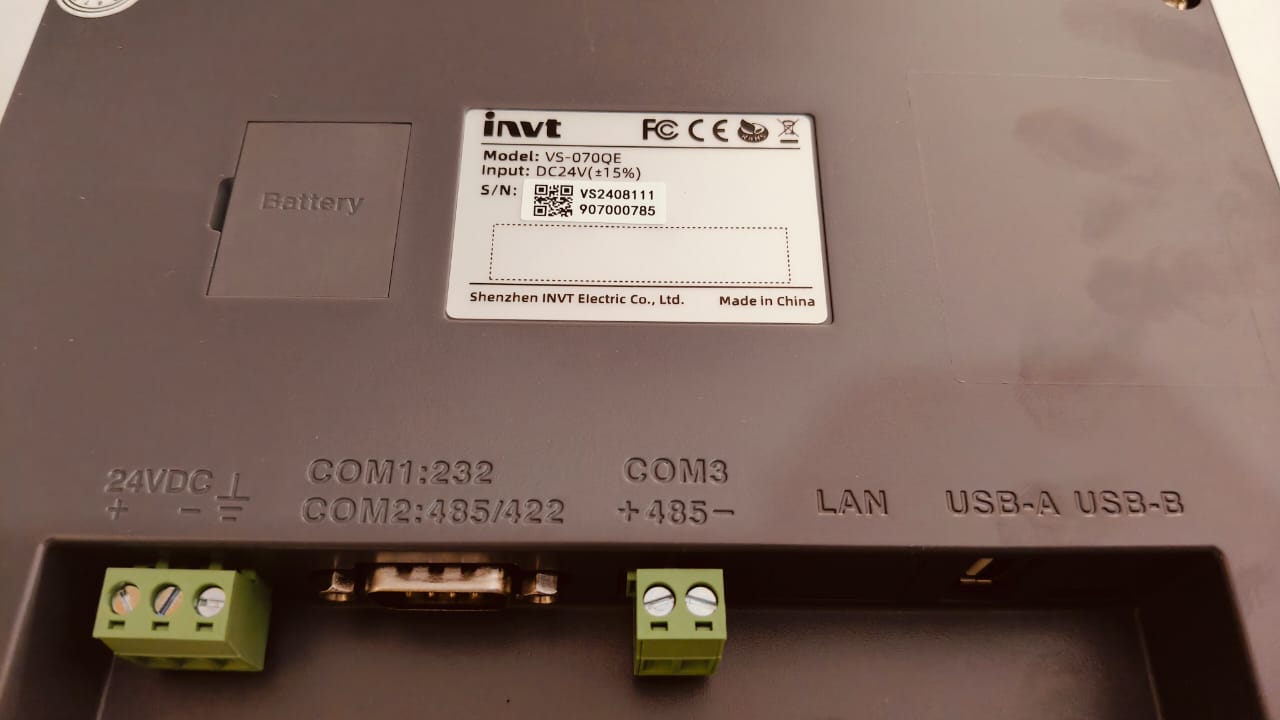

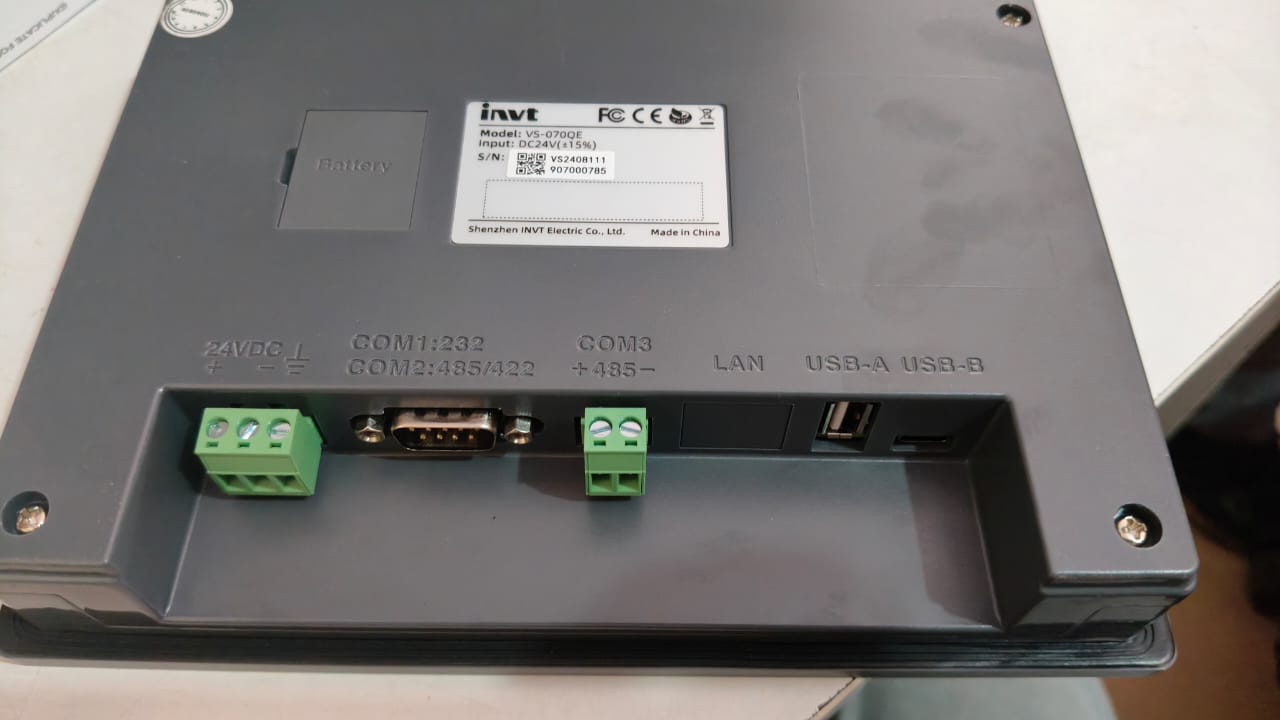

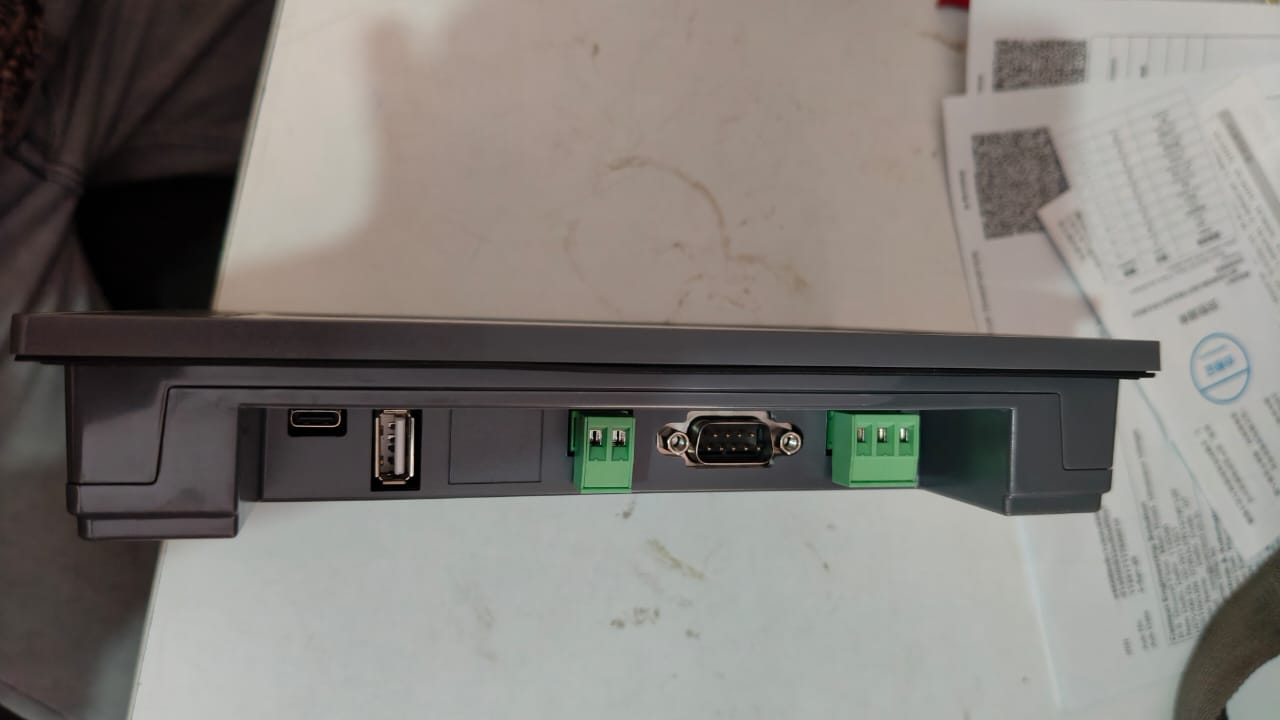

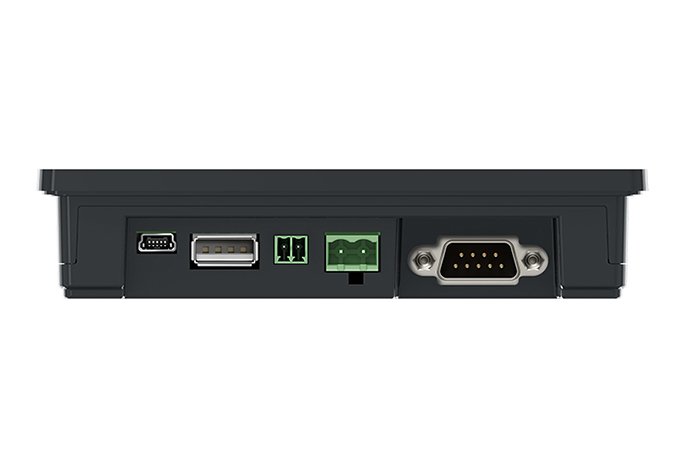

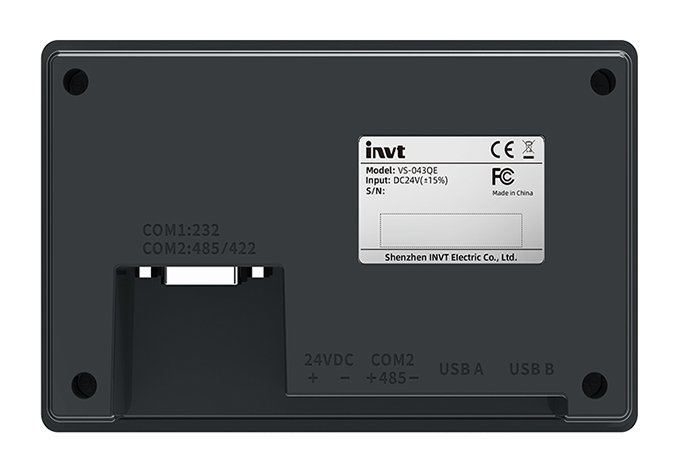

*Built-in COM port is integrated with RS232/422/485 communication modes
* Support industrial Ethernet communication, realize data exchange among multiple devices via built-in 10M/100M self-adaptive network card
* Support free port communication protocol
* Abundant built-in vectorgram library
* Support customized vectorgram
* Provide standard outline for common vectorgram
* Support macro instruction programming, C language script
* Support U-disk update and data import/export
* PC can communicate with PLC directly via HMI
* Support two HMIs to communicate simultaneously with one PLC
* Online simulation function, PC can be connected to PLC directly to simulate configuration project
* Alarm record memory can be expanded
* Support five languages
* Support TRUE TYPE (TTF) font
* Support complicated font edit
* Unicode coding, international standard
* Industry-level design enables stable operation
* High-capacity FLASH, power-off memory, support U-disk storage
* New password system which is safer and more reliable
* With CE and RoHS Declaration

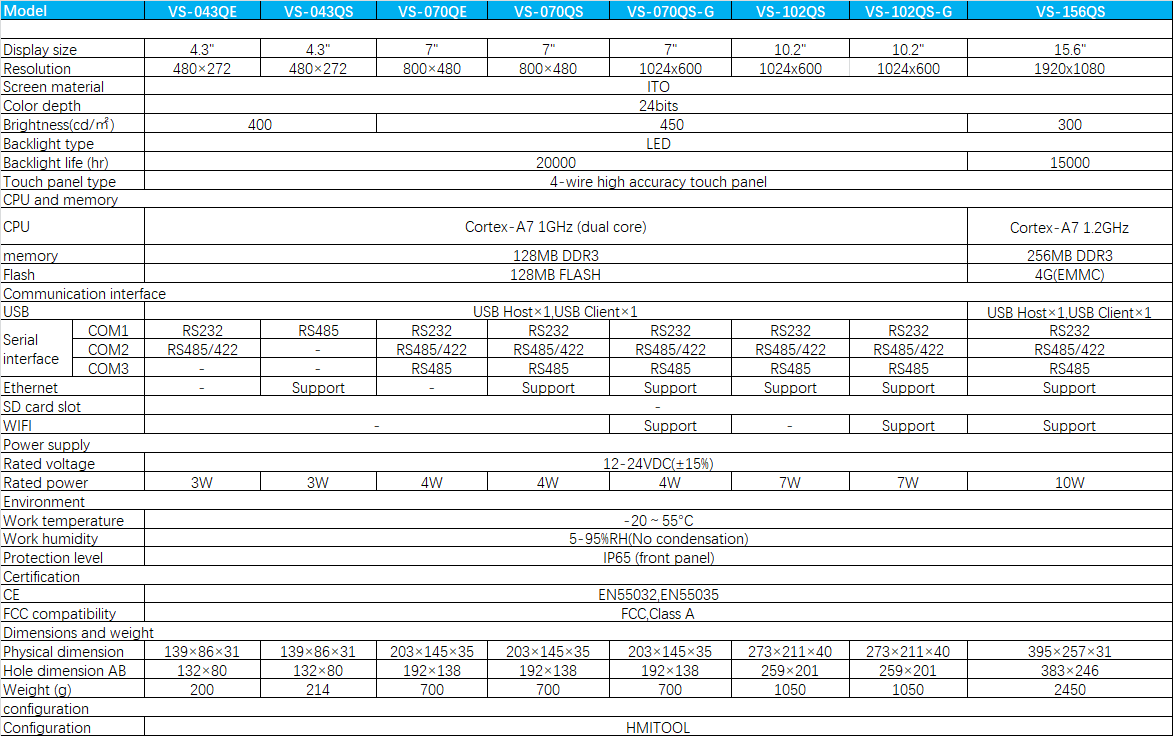

* Specification:

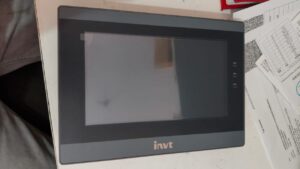

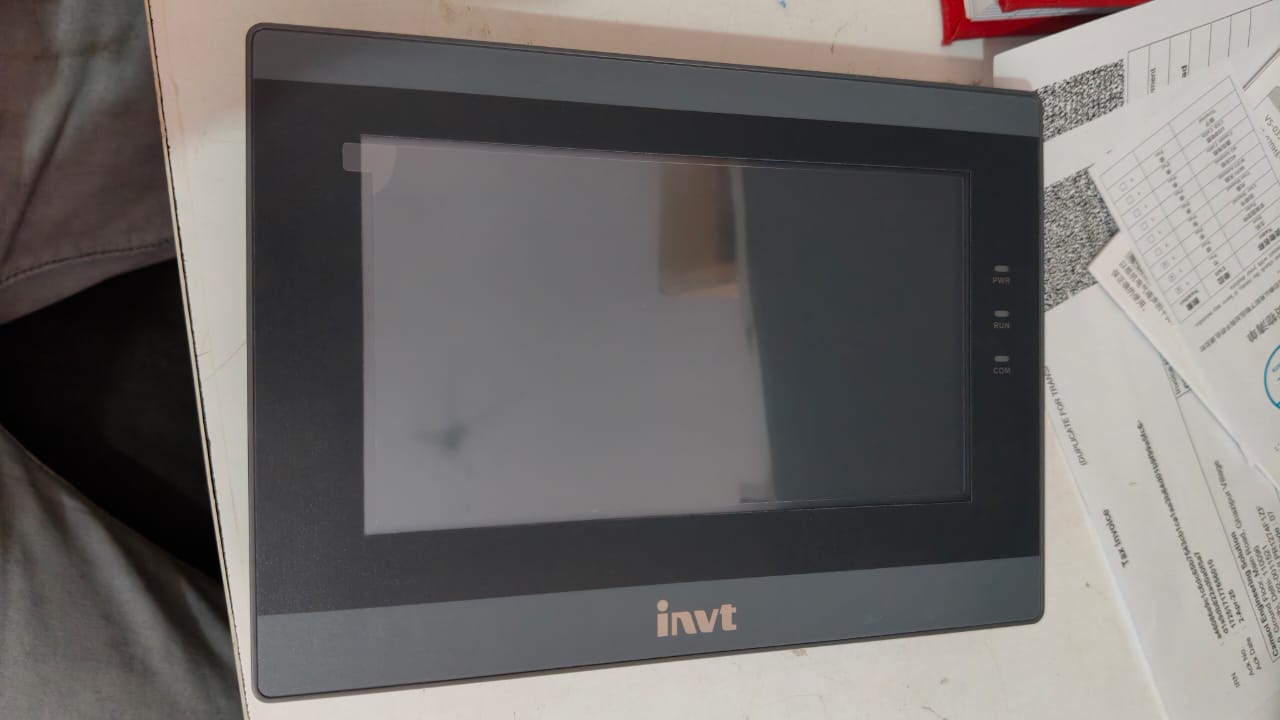

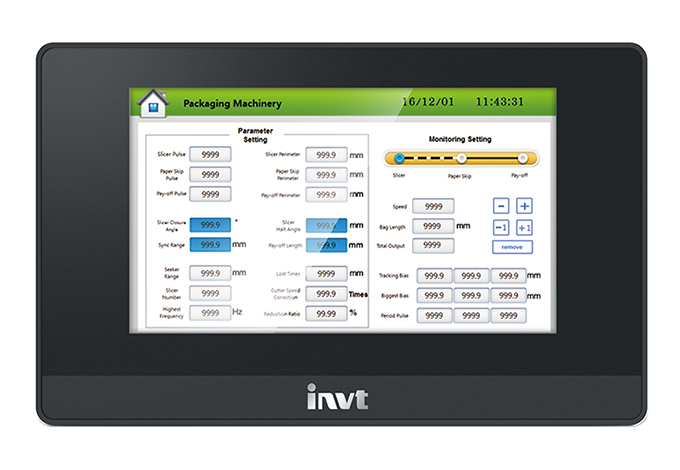

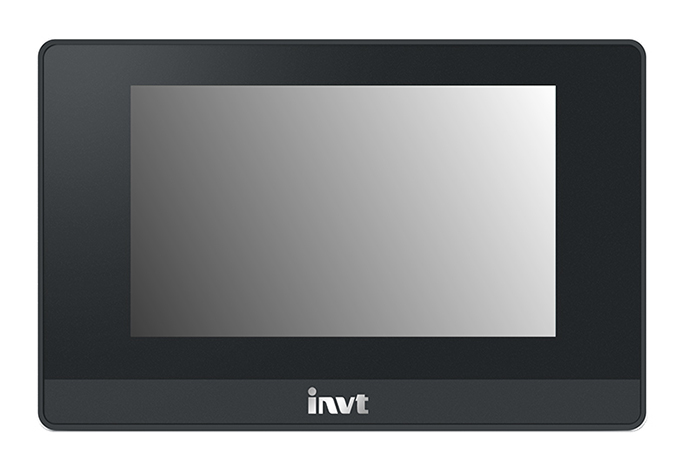

INVT HMI VS-Q models:
VS-043QE VS-070QE VS-102QE VS-070QS Vs-102QS
