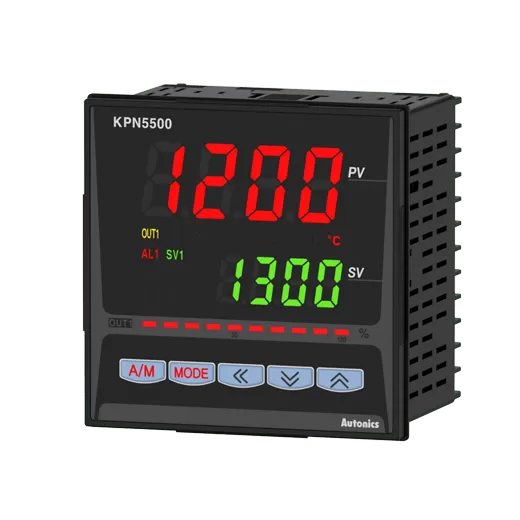

Autonics KPN Series

Bar Graph Temperature Controllers

The KPN series high performance digital process controllers offer high-speed sampling speed of 50 ms and high display accuracy of ±0.3%. The large, high luminance LED dual display provides clear PV and SV readings with bar graph display of control output value (MV). The series also feature high performance control with independent heating/cooling control and automatic/manual control functions.

# Bar Graph Display # High Performance PID #High Speed Sampling

#Simultaneous Heating/Cooling Control

Why Choose us

Genuine Products

ISO Certified

On Time Delivery

Customer Support

Description

High speed sampling of 50ms and ±0.3% display accuracy
Enable to check control output operation amount by adopting bar graph
Simultaneous heating/cooling control and automatic/manual control for high performance control
Selection function of current output or SSR drive output
Parameter setting available via PC (USB and RS485 communication)
– Free device comprehensive management program (DAQMaster)
Communication converter sold separately: SCM-US(USB/Serial converter), SCM-38I(RS232C/RS485 converter) SCM-US48I(USB/RS485 converter)
Multi-SV (max. 4) function (select via digital input terminal)
Heater break alarm
CT sold separately: CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
Small size (rear length: 60mm)
Multi input/multi range
