Main features
- Global shutter method for accurate image capturing with minimal motion blur
- Various inspection functions: alignment, brightness, contrast, area, edge, shape, length, angle, diameter, object counting, barcode, OCR, OCV, patterns
- Set up to 64 separate work group (32 inspection points per work group)
- Save data to FTP servers
- Support smart camera software (atVision)
: inspection simulator function, manage parameters and work group, inspection results monitoring, send data to FTP, multilingual support, etc. - IP67 protection structure (IEC standard) – with waterproof lens cover (sold separately)
- C-Mount type
- Gigabit Ethernet communication
- Power I/O cable available (sold separately)
-
Global Shutter Method
-
Set Workgroups
-
Save Data
-
Various Inspection Functions
-
Dedicated Software
-
Protection Rating
-
C-Mount
Power I/O Cable
(Sold Separately)

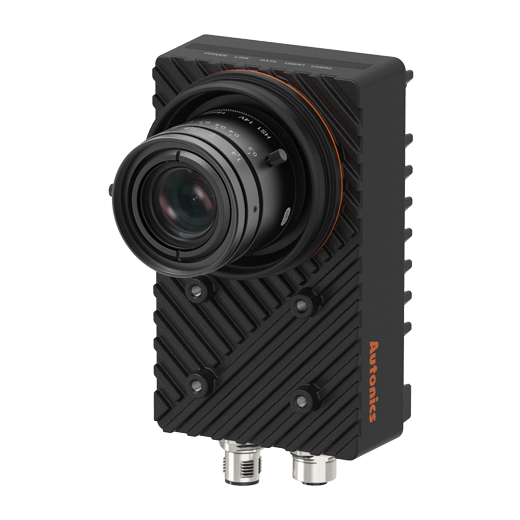

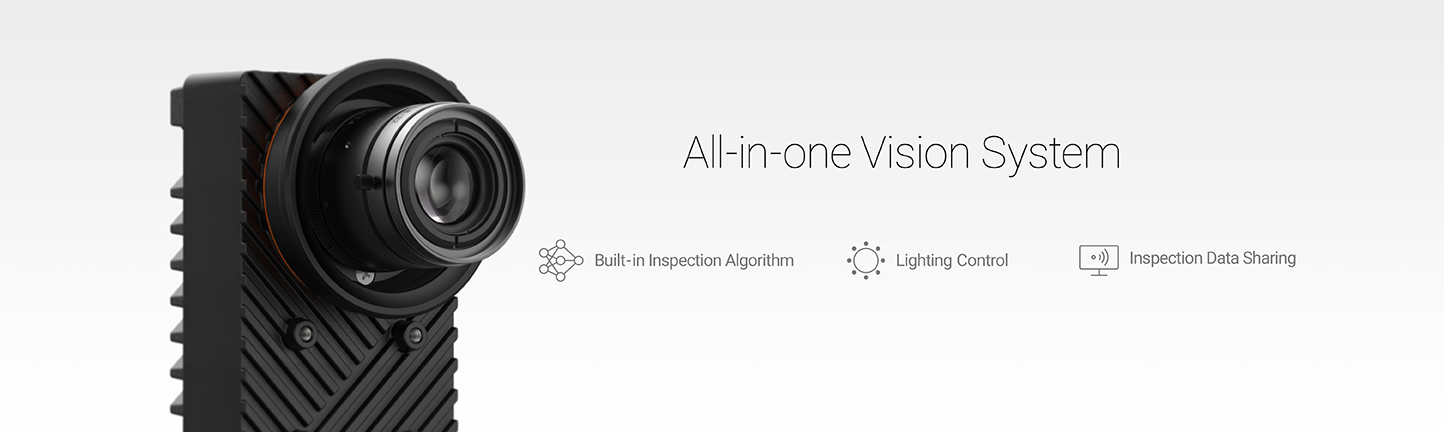

All-in-one Vision System

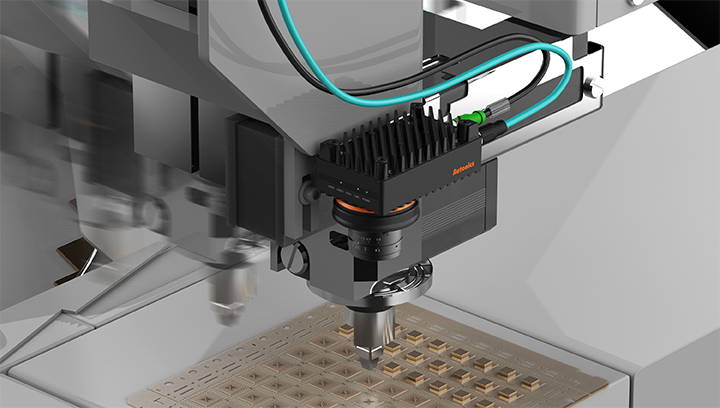

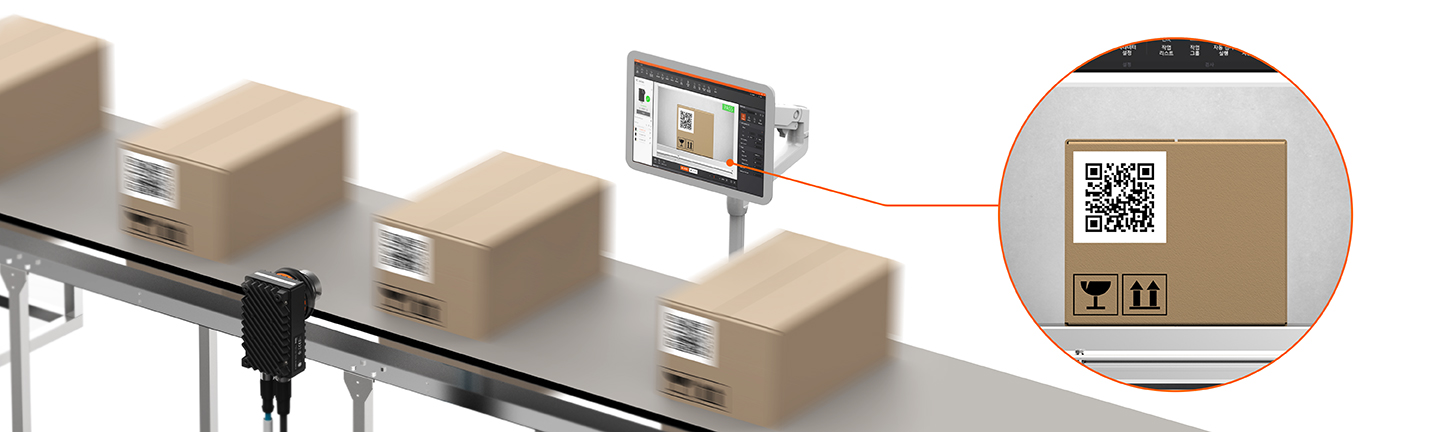

The VC series smart camera is an all-in-one vision system offering simple inspection as well as advanced measurement and reading. The VC series smart cameras can be used in various application including pick-and-place, arrangement, and more.
Global Shutter Method Reduces Motion Blur
The global shutter method allows the camera to capture images of fast moving targets with minimal distortion and motion blur.
14 Types of Inspection Functions
The cameras feature 14 different essential inspection functions including 1D/2D barcode reading, OCR/OCV, patterns, alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting.
-
-

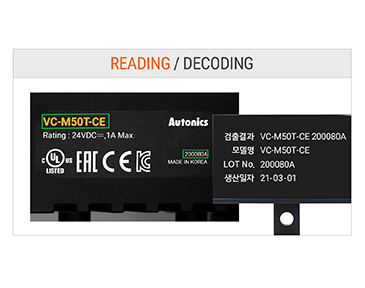

OCR (Optical Character Reading)
Detect and recognize the letters of the captured image’s ROI (region of interest).
-
-
-

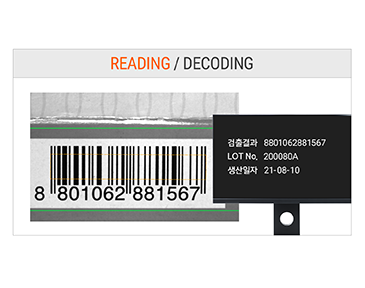

1D Barcode Reading
Inspect and analyze the code patterns of the captured image’s ROI (region of interest) in reference to the code of the registered image’s ROI.
-
-
-

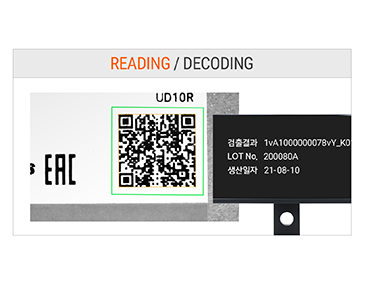

2D Barcode Reading
Inspect and analyze QR code patterns and data matrix of the captured image’s ROI (region of interest) in reference to the code of the registered image’s ROI.
-
-
-

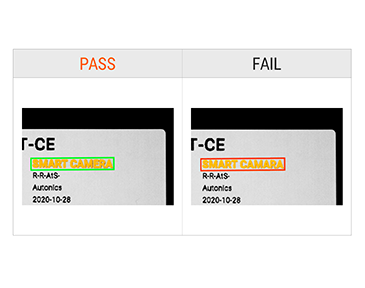

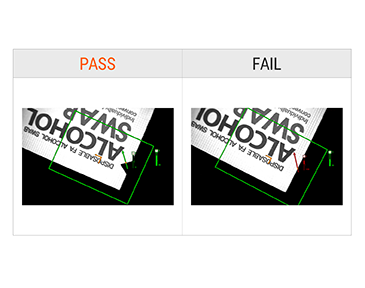

OCV (Optical Character Verification)
Inspects the letters of the captured image’s ROI (region of interest) in reference to the letters of the registered images’ ROI.
-
-
-

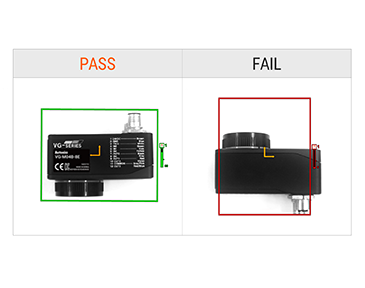

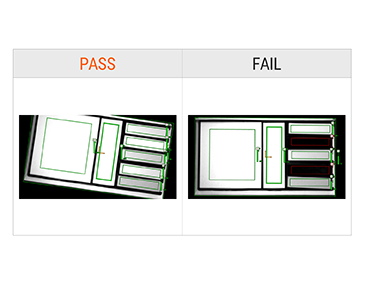

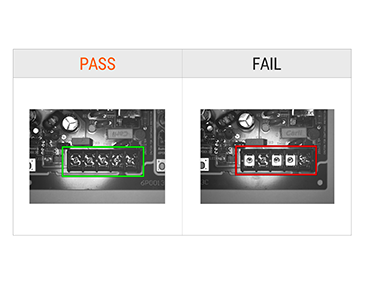

Patterns
Inspects the patterns of the captured image in reference to the registered image, comparing the similar patterns with matching function.
-
-

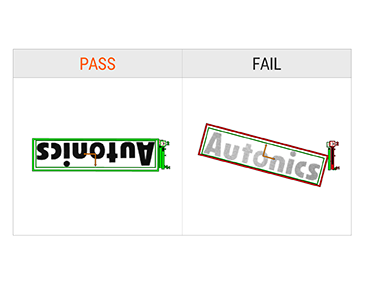

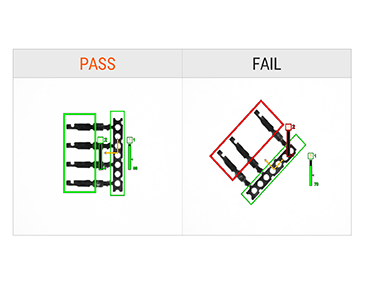

Alignment
Inspects the characteristics of the captured image in reference to the registered image, comparing the location and angle of similar patterns.
-
-
Brightness
Inspects the brightness of the captured image’s ROI (region of interest) in reference to the average brightness of the registered image’s ROI.
-
-
-
Contrast
Inspects the contrast of the captured image’s ROI (region of interest) in reference to the contrast of the registered image’s ROI.
-
-
-
Area
Inspects the area of the captured image’s ROI (region of interest) in reference to the area of the registered image’s ROI.
-
-
-

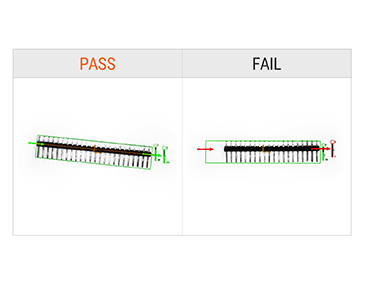

Edge
Inspects the direction of the edge of the captured image in reference to the edge location of the registered image.
-
-
-

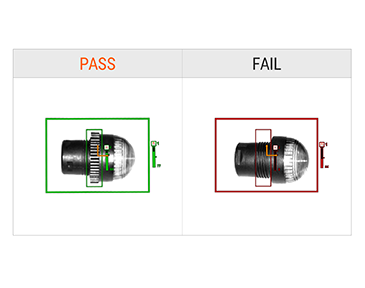

Shape Comparison
Inspects the shape of the captured image in reference to the shape of the registered image.
-
-
Length
Inspects the captured image in reference to the length set by the user between two edges of the registered image.
-
-

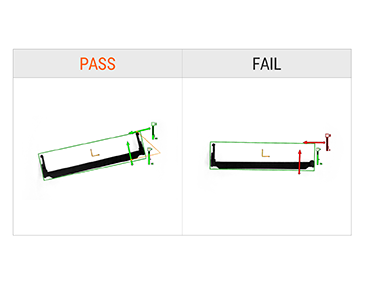

Angle
Inspects the captured image in reference to the angle set by the user between two edges of the registered image
-
-
-

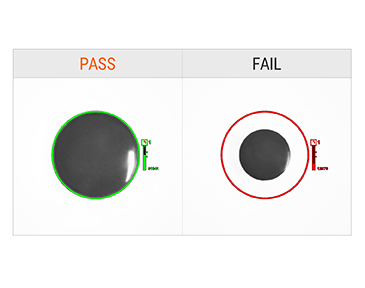

Diameter
Inspects the captured image in reference to the two diameters set by the user for the registered image.
-
-
Object Counting
Inspects the number of objects in the captured image’s ROI (region of interest) in reference to the registered number of objects in the registered image’s ROI.
-
-
Set Up to 64 Workgroups
Users can set up to 64 different workgroups and up to 32 inspection points can be set up per each workgroup.
-
-

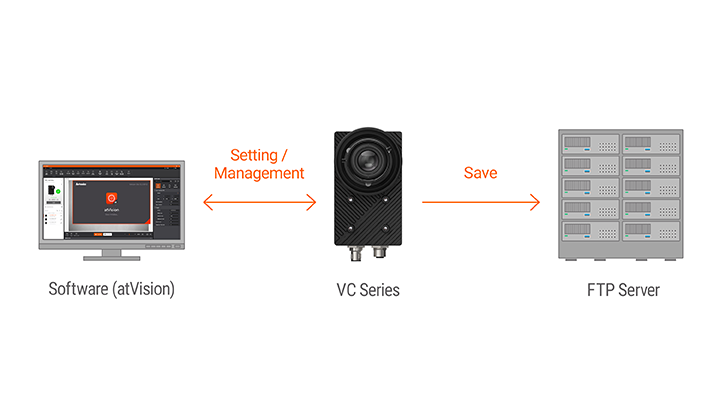

Save Data to FTP Servers
The image data captured by the VC series can be transferred and stored to FTP servers. Depending on the configuration, users can choose to save all images, pass images only, or fail images only, making it easy to view, manage and analyze the stored data.
-
-

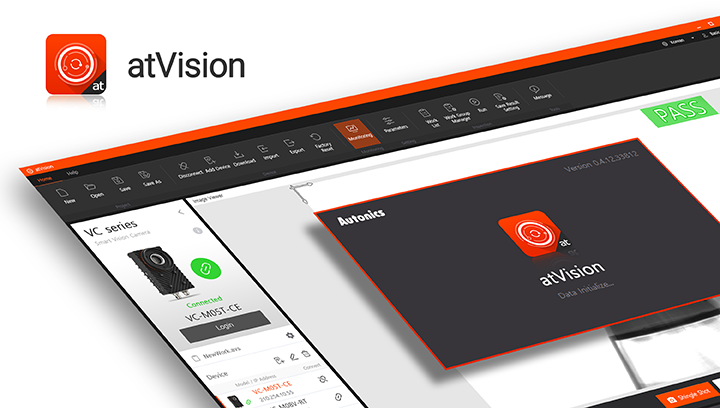

Free Smart Camera Software (atVision) Provided
The atVision software allow users to directly set parameters, monitor inspection data and more with an easy-to-use, intuitive graphic UI design.
-
-

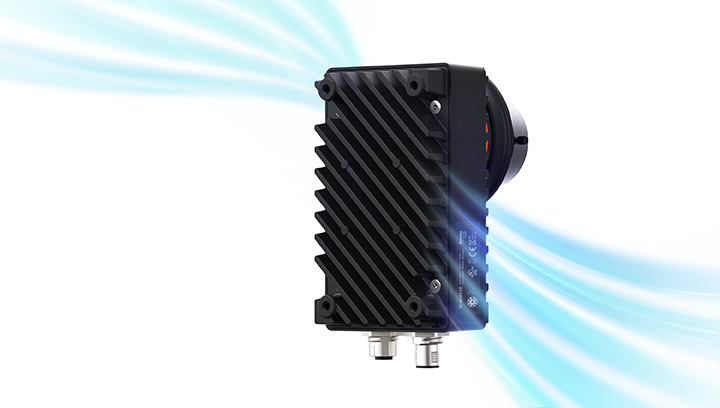

Optimized for Heat Dissipation
The VC series is optimized for heat dissipation to ensure reliable operation and high life expectancy.
-
Drag Chain Type Power I/O Cables(Sold Separately)
Diverse cable lengths (2 m, 5 m, 10 m) are available for various user requirements without worry of breaking.
-
Applications
-
-
Automated Automotive Manufacturing Process
Automated Automotive Manufacturing Process – Stamping process / Welding process / Painting process
-
Pharmaceutical Drugs Packaging
Vision sensors are used to identify the number of pills, presence or absence of pills, or defects in packaging of pharmaceutical drugs. -
Beverage Container Transport Conveyors
Vision sensors are used to identify the presence of expiration date printing on packages on beverage packaging lines.
-
Automobile Parts Manufacturing
Smart cameras are used to measure the diameter of engine blocks in manufacturing lines.
-
Plastic Container Manufacturing
Smart Cameras are used to identity the shape of plastic containers in manufacturing lines.
-
Color type vision sensors are used to identify colors of relays in fuse box manufacturing lines.
Color type vision sensors are used to identify colors of relays in fuse box manufacturing lines.
-
Cosmetic Container Transport Conveyors
Vision sensors are used to identify the printing status on cosmetics containers.
-
Syringe Assembly and Manufacturing
Vision sensors are used to identify presence, absence, or defects of rubber packaing in syringes during manufacturing process.
-
Semiconductor Parts Transport
Vision sensors are used to identify the presence or absence of parts for defects during semiconductor transfer lines.
-
Packaged Food Transport Conveyors
Vision sensors are used to identify the sealing status of food containers on conveyor belts.
-
Packaging Industry
Vision sensors used to identify the number of items in containers in packaging lines.
-
Inkjet Markers
Vision sensors are used to identify the printing status of marks on packaging paper from inkjet markers.
-
Packaged Goods Transport Conveyors
Vision sensors are used to identify the size of boxes on shipping conveyor belts.
-
Automobile Parts ManufacturingVision sensors are used to identify the shape of automotive parts (spark plugs) in manufacturing lines.
-
Automobile Parts Manufacturing
Vision sensors are used to identify the shape of automotive parts (wheels) in manufacturing lines.
