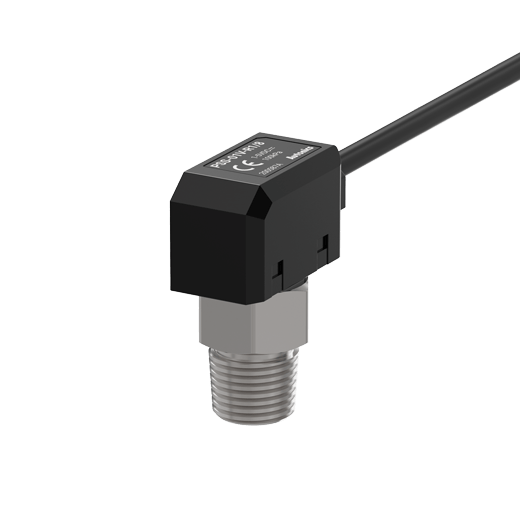

Main features
※ Reducer pressure port (Φ4, Φ6) models have been added to the line-up.
- Rated pressure range
– negative pressure (0kPa to -101.3kPa)
– positive pressure (0kPa to 100.0kPa/0kPa to 1000kPa)
– compound pressure (-101.3kPa to 100kPa) - Compact design :

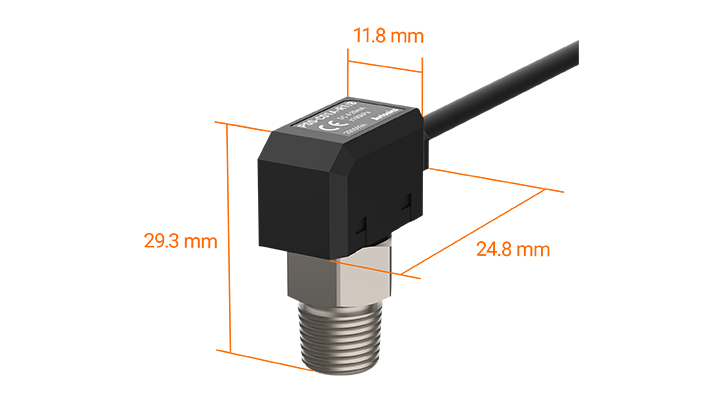

– [Standard model (R1/8 port)] W 11.8 mm x H 29.3 mm x L 24.8 mm (including pressure port)

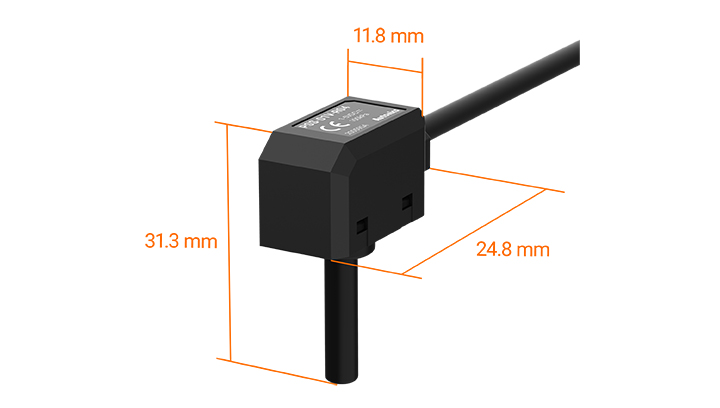

– [Optional Model (reducer port)] W 11.8 mm x H 31.3 ~ 32.8 mm x L 24.8 mm (including pressure port) - Analog output : voltage (1-5VDC), current (DC 4-20mA)
- Power supply: 12-24 VDC ±10%
-
Wide Pressure Range
-
Compact Size
-
Analog Output
Reverse Polarity Protection Circuit

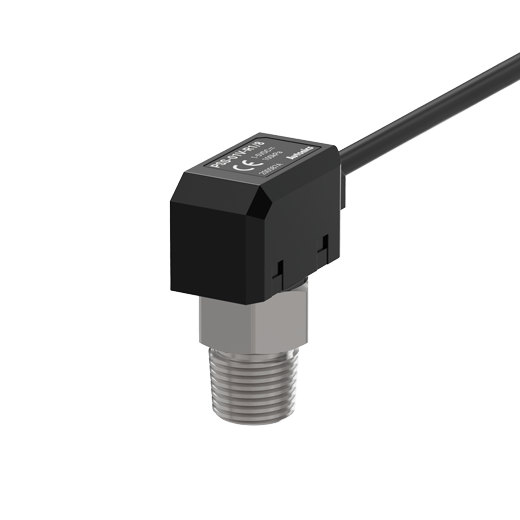

Compact Sized Sensors for Installation in Limited Spaces
The rectangular type pressure sensors with compact size can be installed in limited spaces.

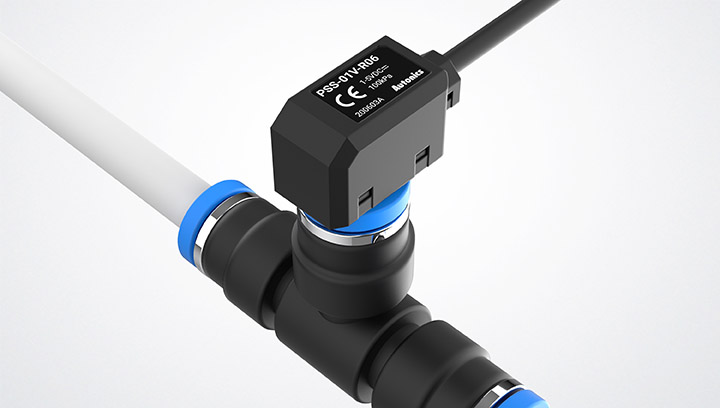

Easy Mounting with Reducer Port Type
One-touch mounting is available with reducer pressure port for convenient installation.
Applications
-

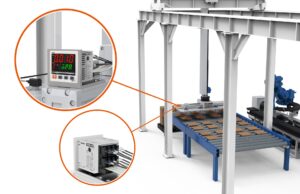

Tile Transport Line
Multi-channel pressure sensor indicators and compact size pressure sensors are used to detect pressure changes in vacuum grippers during tile transport process.
-

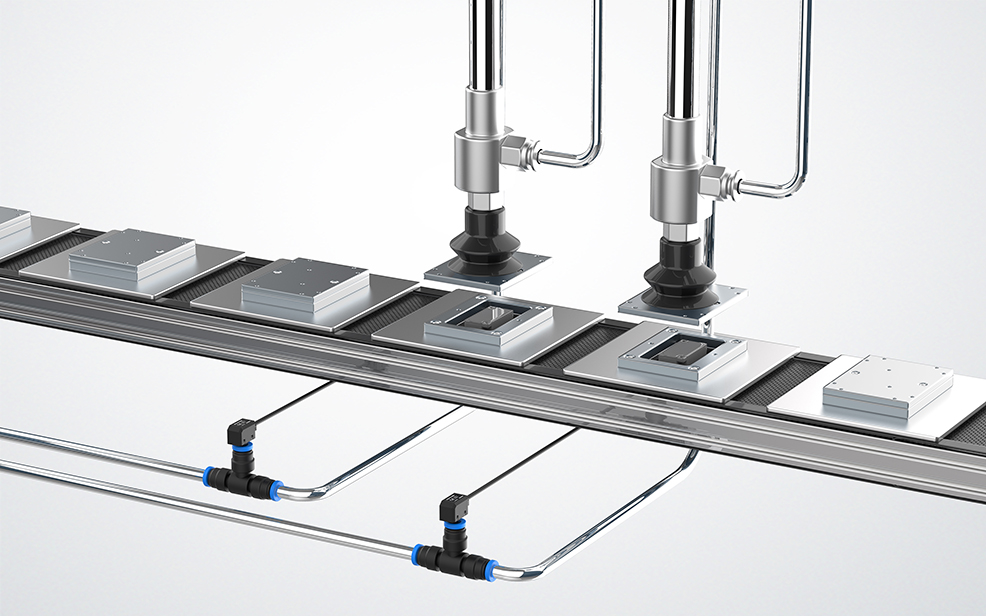

Pick & Place Process
The PSS series can be used to monitor the pressure of vacuum ejectors for the absorption during pick and place process.
-
Potato chip manufacturing and packaging process
This is an application example of potato chip manufacturing and packaging process using Autonics products.
-

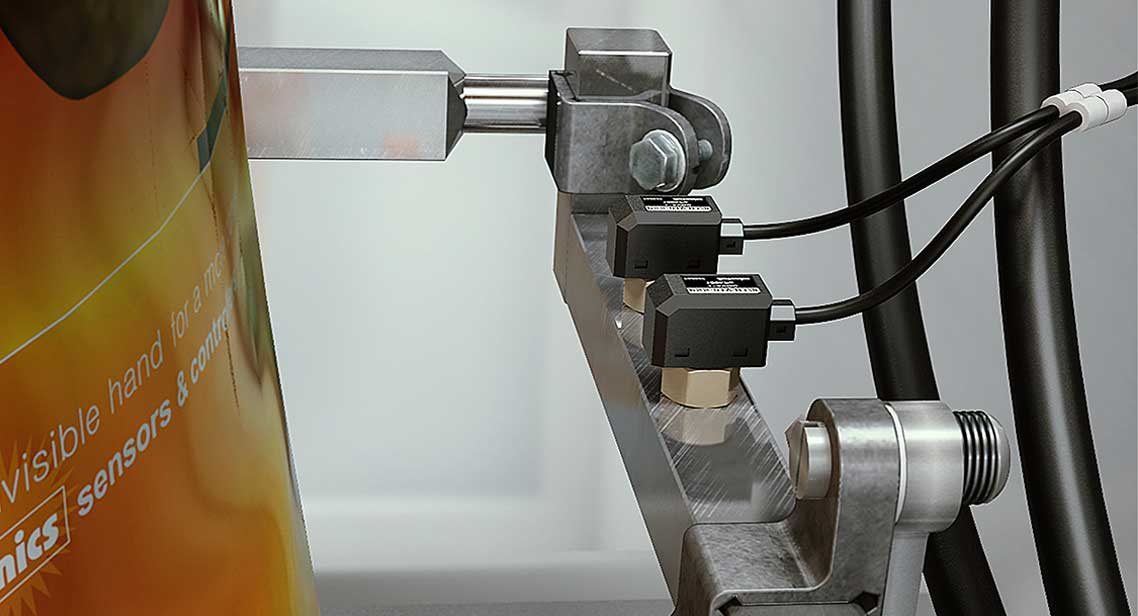

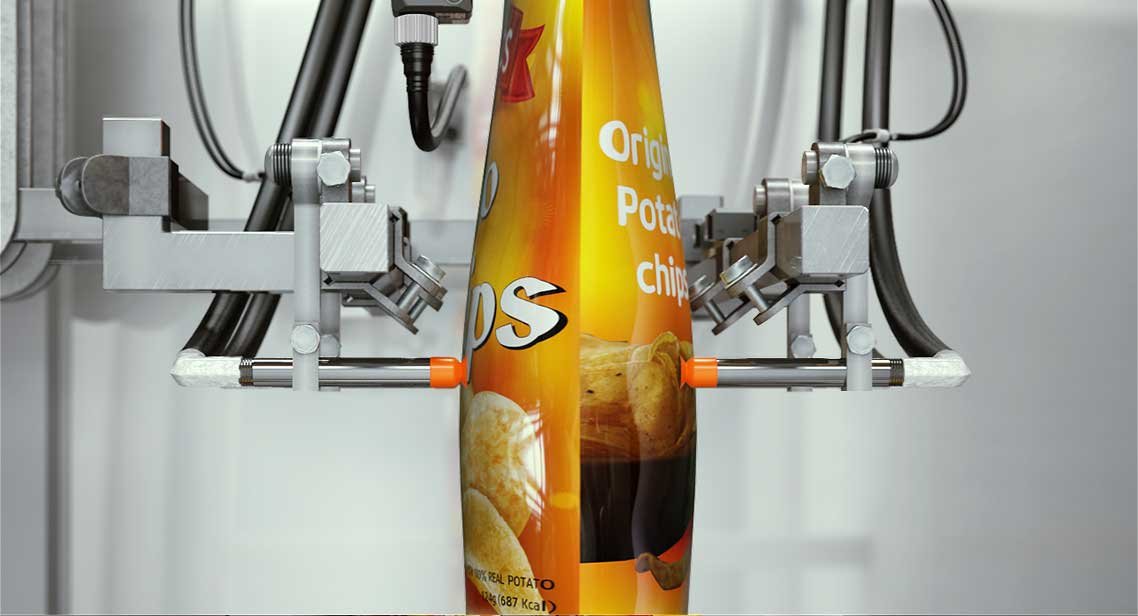

Chip Bag Filling, Sealing, and Cutting
Compact pressure sensors are used to measure pressure during suction and inflation process of packaging material
