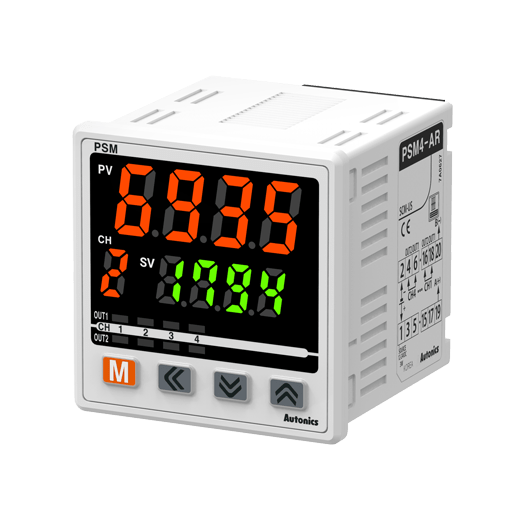

PSM Series-Multi-Channel Pressure Sensor Indicators

PSM SeriesMulti-Channel Pressure Sensor Indicators

The PSM series multi-channel pressure indicators can display up to 4 or 8 channels of measured values from analog pressure sensors. When used with PSS series pressure sensors, the units can automatically identify the sensor models, pressure type and range without requiring additional configuration. Users can also easily copy parameters between channels, and the Auto Shift function allows stable output by adjusting the determined pressure level to match the change in pressure in reference to the original pressure.

certmarkcertmarkcertmark
Enquiry

Main features

  • Display 8 (PSM8) or 4 (PSM4) channels of pressure value from analog pressure sensors
  • Input range: 1-5 VDC, DC 4-20 mA (by model)
  • Pressure sensor model auto recognition (Autonics PSS series pressure sensors)
  • Set PV display color by control output type (red/green)
  • Individual output indicators for each channel
  • RS485 (Modbus RTU) communication support
  • Refrigeration pressure control mode
  • Easy wiring and connection with sensor connectors (CNE)
  • Power supply: 12-24 VDC ±10%
    • Up to 8 Channels



    • Individual Output Indicators



    • Copy Parameters Function



    • RS485 Communication(Modbus RTU)



    • Easy Wiring



  • Dedicated Software

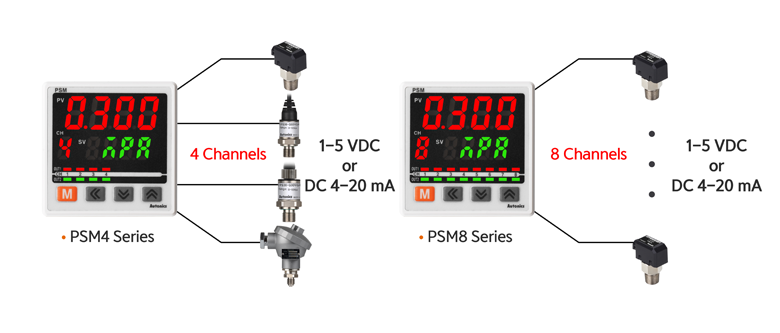

Display Multiple Channels (4 Channels / 8 Channels) of Measured Input Values

The PSM series pressure sensor indicators can display multiple channels of measured pressure value from analog pressure sensors (4 channels / 8 channels by model)

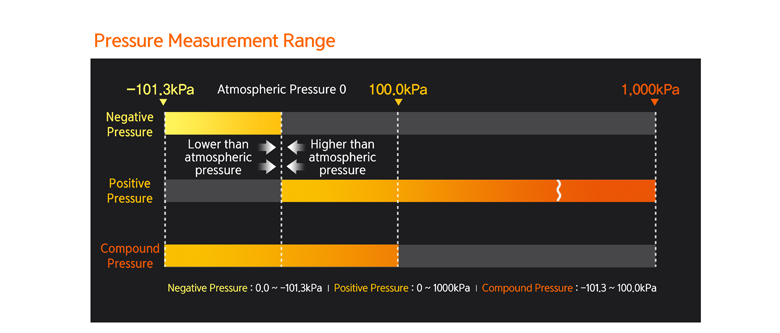

Pressure Range (Negative, Positive, Compound)

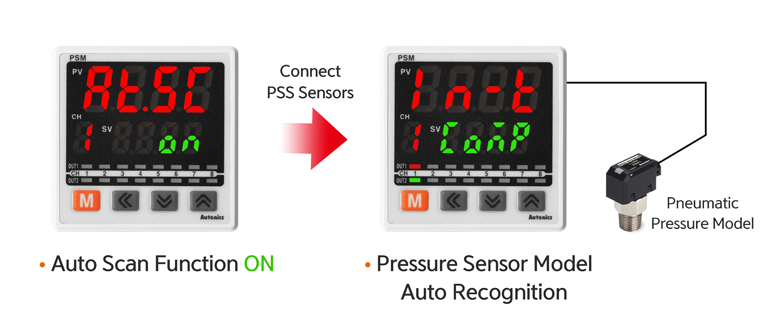

Pressure Sensor Model Auto Recognition

When used with PSS series pressure sensors, the units can automatically identify the sensor models, pressure type and range without requiring additional configuration.

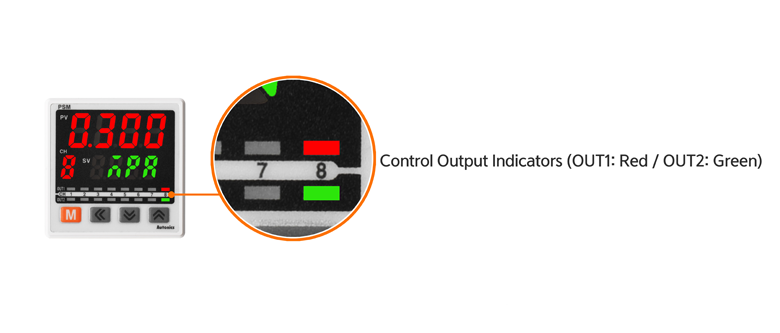

Individual Output Indicators for Each Channel

The output indicators for each channel will turn ON when with each individual output. Users can quickly identify the output status of each channel.

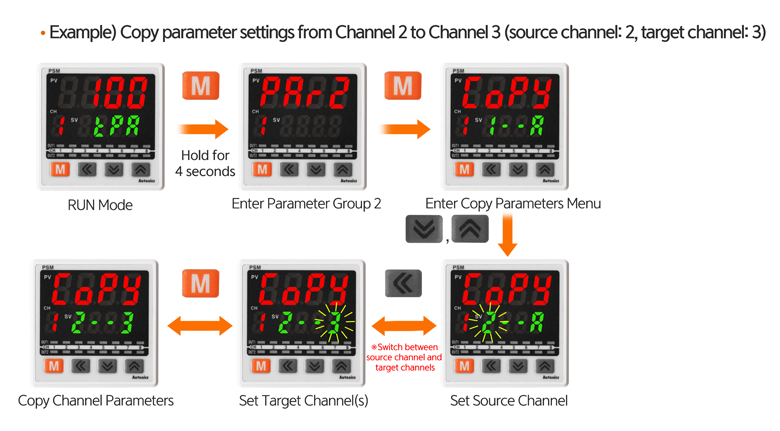

Copy Parameters Function Between Channels

The parameter settings of any channel can be copied to any other channel or all channels, reducing configuration time and error.

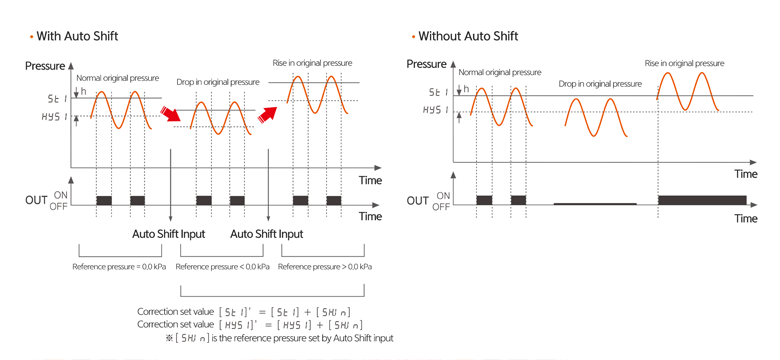

Auto Shift Function

With change in the original pressure, the determined pressure level is adjusted to match the change in pressure level in reference to the current pressure.

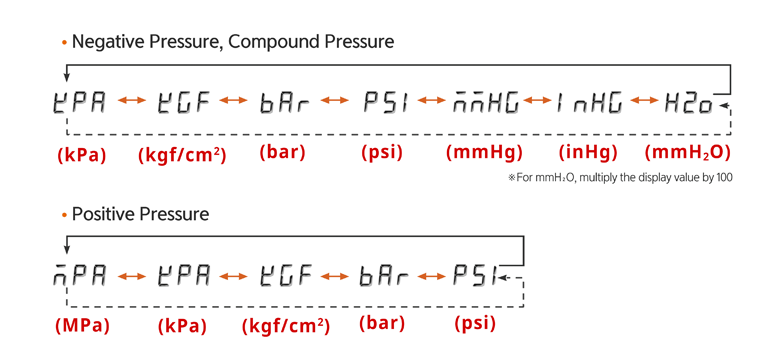

Supports 8 Types of Pressure Units

The indicators support 8 types of pressure units for flexible application in diverse environments

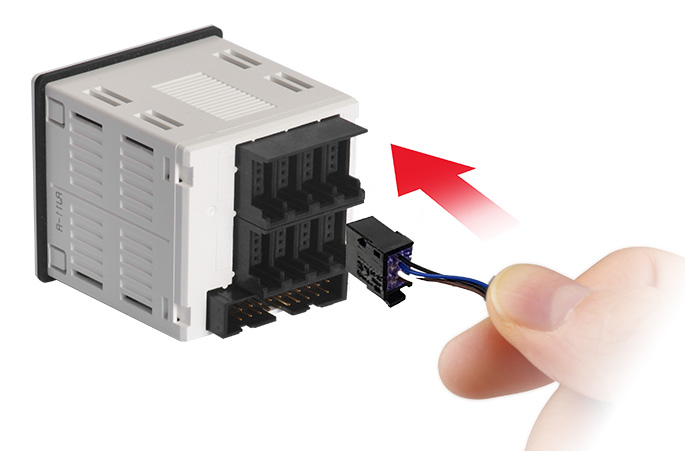

One-Touch Connector Wiring

The one-touch, push-to-connect wiring allows easier connection and maintenance.

  • One-Touch Connector Wiring

Applications

  • Automated Automotive Manufacturing Process (Video)

    Automated Automotive Manufacturing Process – Stamping process / Welding process / Painting process

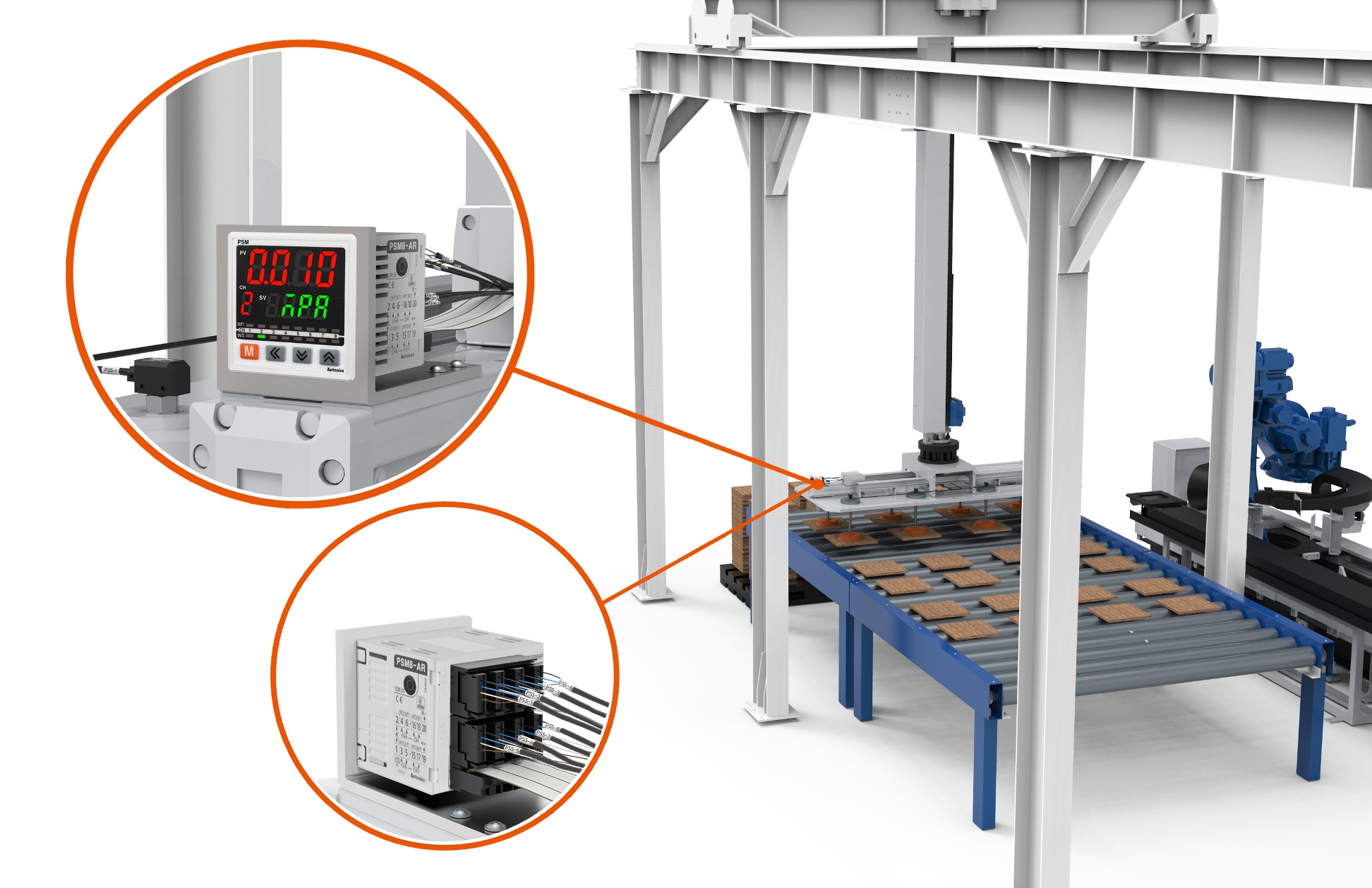

  • Tile Transport Line

    Multi-channel pressure sensor indicators and compact size pressure sensors are used to detect pressure changes in vacuum grippers during tile transport process.
