PRD Series Long-Distance Cylindrical Inductive Proximity Sensors

Long-Distance Cylindrical Inductive Proximity Sensors

    The PRD series cylindrical inductive proximity sensors are available in standard and IO-Link communication models. The sensors feature long sensing distances and excellent noise immunity. Available in various sizes and sensing distances, the high performance cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The sensors also feature strain relief cables for improved flexural strength and durability.

    certmarkcertmarkcertmark
    Cylindrical IO-Link communication Inductive Long sensing distance Cable type Cable connector type Connector type Noise immunity 360° ring type operation indicator IP67 protection structure Easy maintenance Spatter-resistance PTFE coating Metalworking Flexural cable cable support IO-Link IO-Link sensor IO-Link proximity IO-Link device



    Enquiry
    Categories: , ,

    Main features

    ※ DC 4-wire M12, M18, M30 size IO-Link communication models have been added to the lineup

    • Operation indicator (red LED)
    • Communication indicator for IO-Link model (orange, green LED)
    • IP67 protection structure (IEC standard)
    • Strain relief cables: improved flexural strength of cable connecting component (except M8 models)
    • PTFE coating prevents malfunctions caused by welding spatter (spatter-resistant modell

    •

                   Various Protection Circuits                              High Noise Immunity                                Long Sensing Distance



                            Protection Rating                                      IO-Link Communication                        Output Control (IO-Link model)



                           Various Cable Type

    Available in Various Sizes and Cable Types

    The sensors are available in M8, M12, M18, M30 size models, and cable/cable connector types allowing installation in tight or limited spaces and various other user settings

      Easy Maintenance with IO-Link Communication (IO-Link Model only)

      IO-Link communication models feature detection of abnormalities in sensors such as over-access, unstable, disconnection detections for convenient maintenance. IO-Link Master is required for IO-Link communication and IODD file can be download from our website.



        •                                                      PRD Series : Standard Type                                                                                                                           PRD Series : IO-Link Type



      Ring Type Status Indicator

      The 360° ring type operation indicator (orange LED) and stability indicators (green LED) allow users to quickly identify operation status from various angles.

          Green LED : Stability/Communication / Orange LED : Operation                                                                            Ring Type : Cable, Cable Connector Type / 4 Direction LED : Connector Type

      PTFE Coating Prevents Malfunctions Due to Welding Spatter

      The non-stick PTFE coating prevents welding spatter from sticking on to the sensors which minimizes the risk of malfunctions during welding applications.

        • Long Sensing Distance

          The PRD series sensors feature longer sensing distance (1.5 to 2x) compared to Autonics PR series standard inductive sensors.



      • Strain Relief Cables

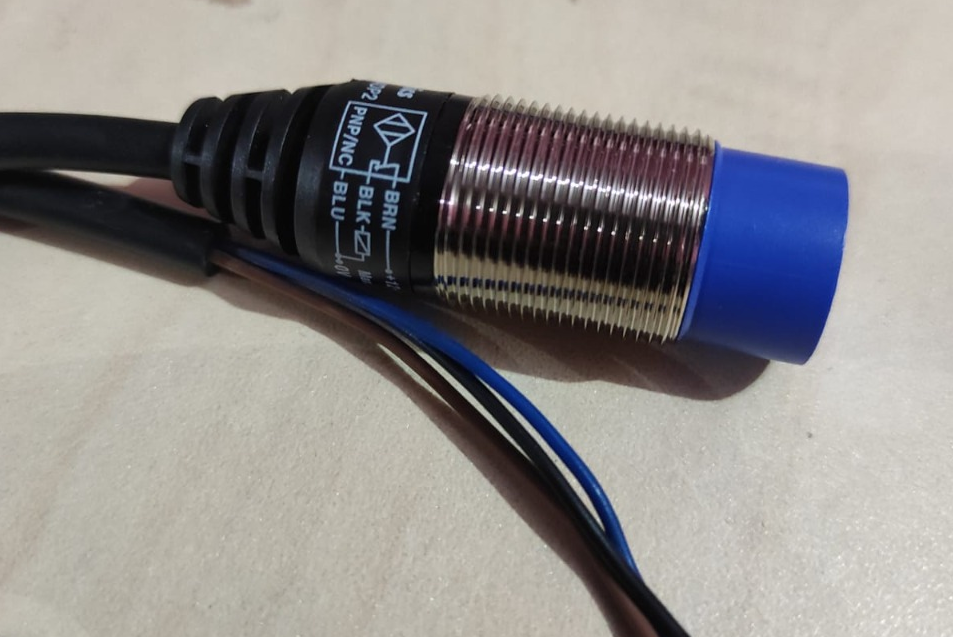

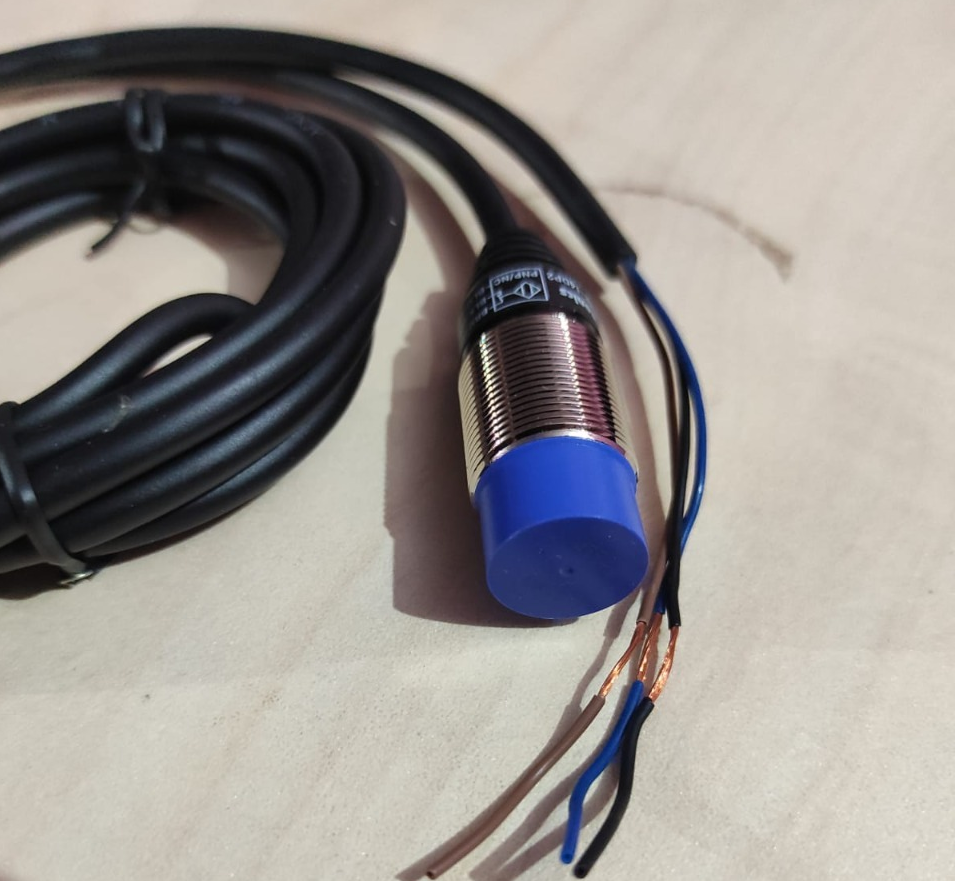

        The PRD series features strain relief cables with improved flexural strength of cable connecting component, allowing higher durability when bending the cables.

        except PRDT08-□DO-□ model

        • Oil-Resistant (PVC) Cable

          The robust oil-resistant cable allows the sensors to be installed in environments with hydraulic fluids or cutting fluids.



      • IP67 Protection Structure

        The IP67 protection structure allows stable and error-free operation even in wet or dusty environments
