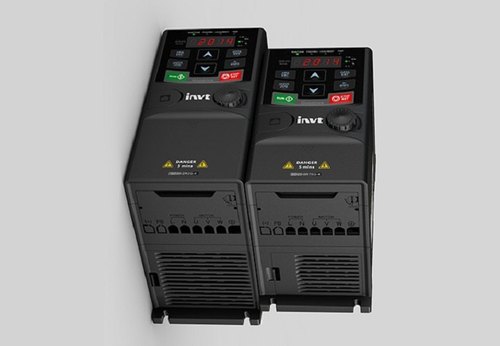

INVT Gd20 1.5 KW

$7,500.00

Product Specification

Brand INVT
Model Name/Number GD20-1R5G-S2
Motor Power 1.5KW
Input Voltage 220 VAC
Input Phase 1 – Phase
Enquiry
Category:

Product Description





Power Input



GD20-UL

Input voltage (V) & power

AC 1PH 110V–120V, rated voltage: 110V 0.4~1.1kW(0.5~1.5HP) AC 1PH 200V–240V, rated voltage: 220V 0.4~2.2kW(0.5~3HP) AC 3PH 200V–240V, rated voltage: 220V  0.4~0.75kW(0.5~1HP)

AC 3PH 380V–480V, rated voltage: 460V 0.75~2.2kW(1~3HP)



GD20-EU

Input voltage (V) & power

AC 1PH 200V–240V, rated voltage: 230V 0.4~2.2kW(0.5~3HP) AC 3PH 200V–240V, rated voltage: 230V 0.4~2.2kW(0.5~3HP) AC 3PH 380V–480V, rated voltage: 400V 0.75~11kW(1~15HP)
Input frequency (Hz) 50Hz or 60Hz; allowed range: 47 – 63Hz


Power Output

Output voltage (V) 0 – input voltage
Output frequency (Hz) 0 – 400Hz














Technical Control Feature

Control mode SVPWM, SVC
Motor Asynchronous motor
Adjustable-speed ratio Asynchronous motor 1:100 (SVC)
Speed control accuracy ±0.2% (SVC)
Speed fluctuation ±0.3% (SVC)
Torque response <20ms (SVC)
Torque control accuracy 10%
Starting torque 0. 5Hz/150% (SVC)










Running Control Feature



Frequency setting method



Digital setting, analog setting, pulse frequency setting, multi-step speed running setting, simple PLC setting, PID setting, MODBUS communication setting

Shift between the set combination and set channel.

Auto-adjustment of the voltage Keep a stable voltage automatically when the grid voltage transients


Fault protection

Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss and overload, etc.

Additional Information

Delivery Time Ready Stock
