Main features

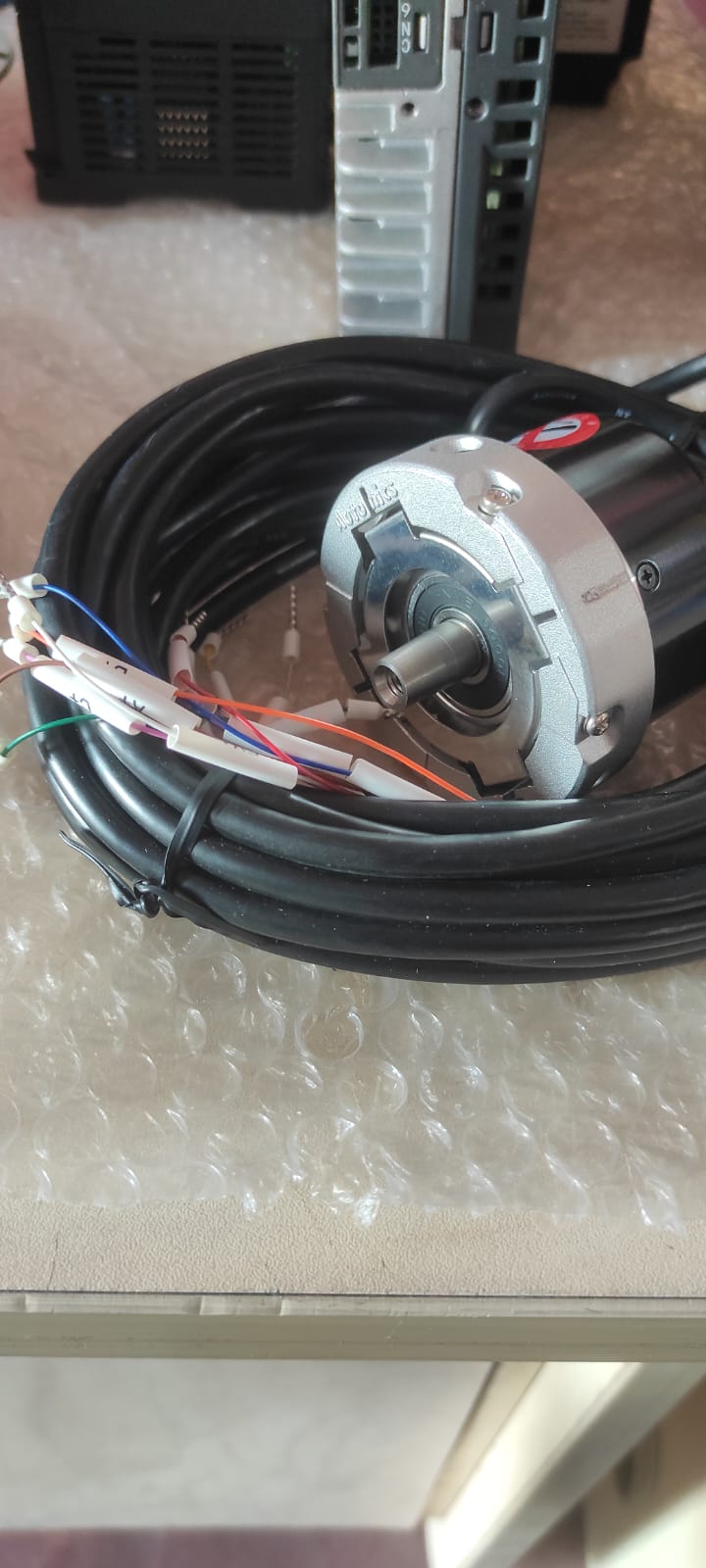

- Tapered shaft
- Analog sine wave operational amplifier (op-amp) output
- Power Supply: 5 VDC ±5%
-
58 mm Diameter Housing
-
Incremental Type
-
Sine Wave Output
-
High Resolution
Operating Temperature

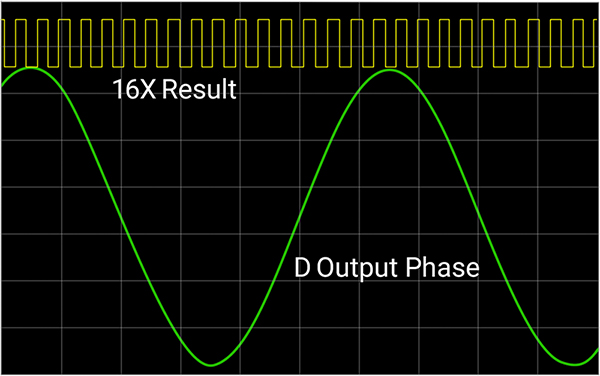

Absolute Position Control and Multiplication Setup Available
The encoders offer up to 2,048 pulses and users can set up multiplication values for A, B output phase signals for high precision position control comparable to over 10,000 pulses. C, D output phase signals can be used to calculate absolute position.
Wide Operating Temperature Range
The encoders offer stable operation in extreme high or low temperatures -20°C to 100°C (compared to previous models: -10°C to 70°C)

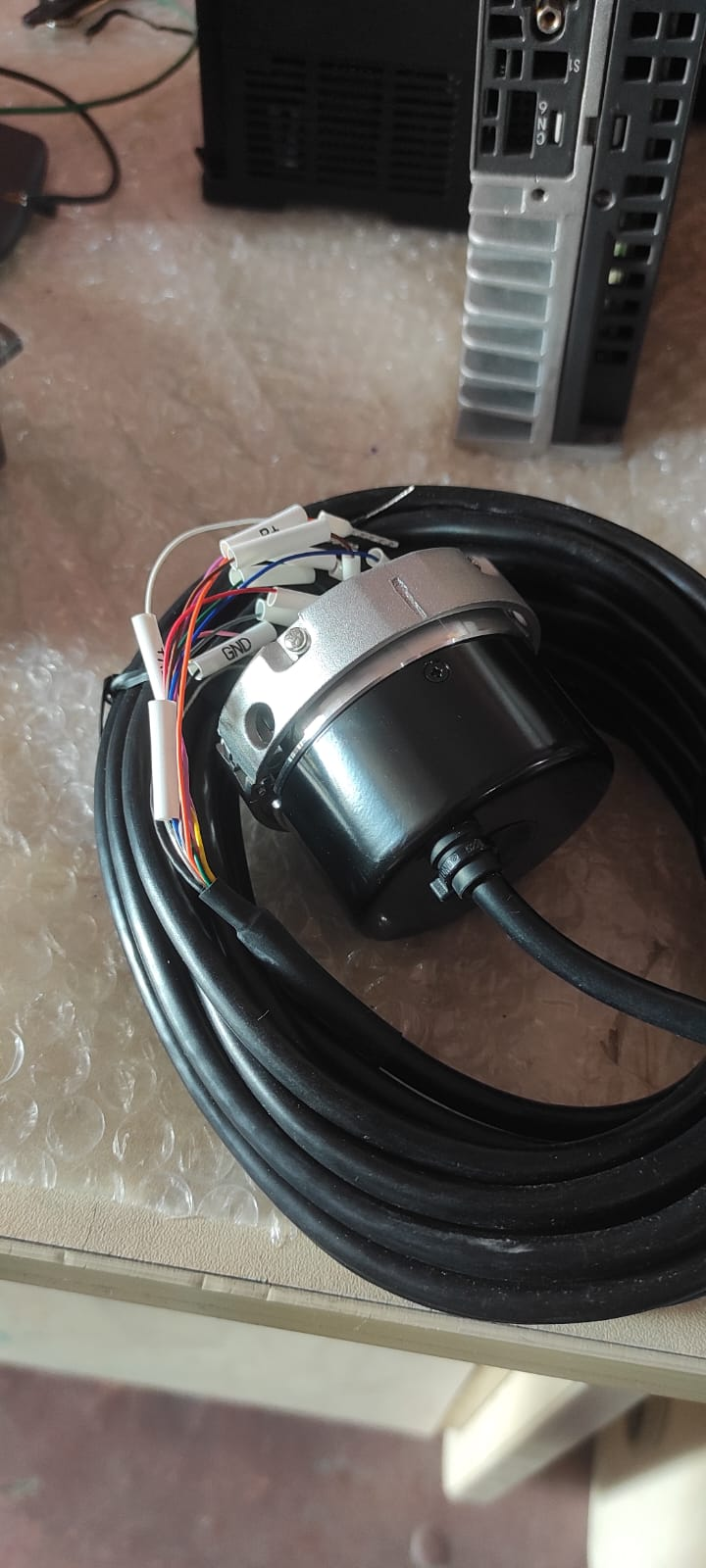

Axial/Radial Cable Types Available
The encoders are available in axial or radial cable types in 7 m, 9 m, and 15 m cable lengths, allowing flexible application in diverse environment settings.
Applications
-
Control of Geared Winding Machines
Incremental rotary encoders are used alongside motors in geared winding machines to control ascending or descending movement of elevator cars.
