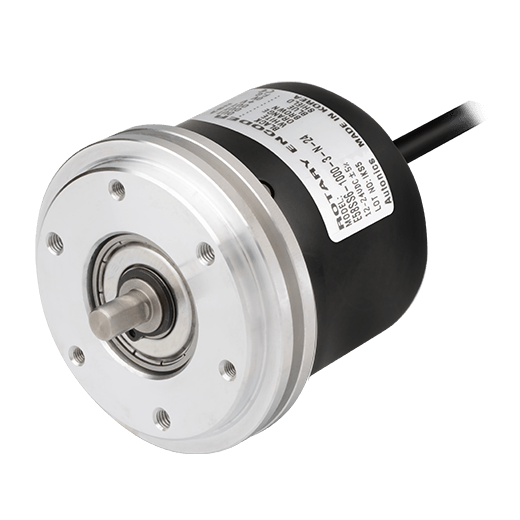

E58SS Series-58 mm Incremental Rotary Encoders (Synchro Shaft Type)

E58SS Series58 mm Incremental Rotary Encoders (Synchro Shaft Type)

The E58SS series synchro shaft type incremental rotary encoders feature Ø58 mm size flanges and provide accurate measurement of angle, position, revolution, speed, acceleration, and distance. The encoders are available in cable type, cable connector type, and axial/radial connector types along with various control output options.

certmarkcertmarkcertmark
Enquiry

Main features

  • Ø58mm flange incremental rotary encoders
  • Accurate measurement of angle, position, revolution, speed, acceleration, and distance
  • Shaft, hollow shaft, blind hollow shaft models available
  • Cable type, cable connector type, axial/radial connector types available
  • Various resolutions : 1 to 8000 pulses per revolution
  • Various control output options
  • Power supply : 5VDC ±5%, 12-24VDC ±5%

Applications

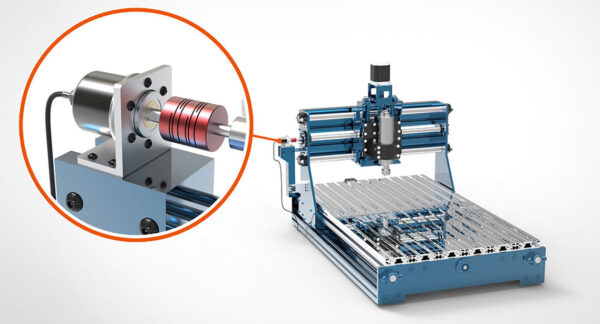

  • Milling Machines

    Rotary encoders and couplings are used to detect and control the shaft rotation on compact-sized milling machines.

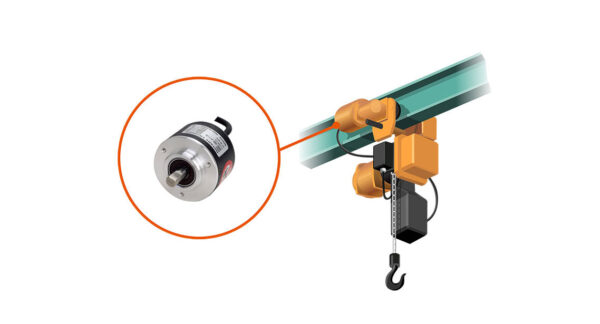

  • Position Control of Hoists

    Rotary encoders are used for positioning control of hoists.
