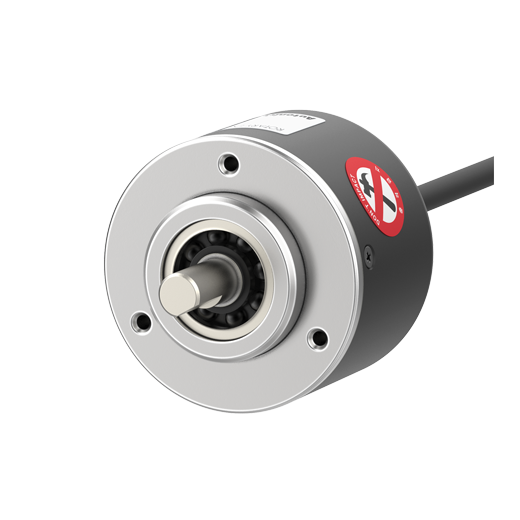

E50S Series-50 mm Incremental Rotary Encoders (Shaft Type)

E50S Series50 mm Incremental Rotary Encoders (Shaft Type)

The E50S series incremental rotary encoders feature Ø50 mm size housings and provide accurate measurement of angle, position, revolution, speed, acceleration, and distance. The encoders are available in cable type, cable connector type, and axial/radial connector types along with various control output options.

50 mm Incremental Shaft Type various control output options Cable type

Enquiry

Main features

Ø50mm housing, Ø8mm solid shaft
Accurate measurement of angle, position, revolution, speed, acceleration, and distance
Cable type, cable connector type, axial/radial connector types available
Various resolutions : 1 to 8000 pulses per revolution
Various control output options
Power supply : 5VDC ±5%, 12-24VDC ±5%

Applications

Milling Machines

Rotary encoders and couplings are used to detect and control the shaft rotation on compact-sized milling machines.

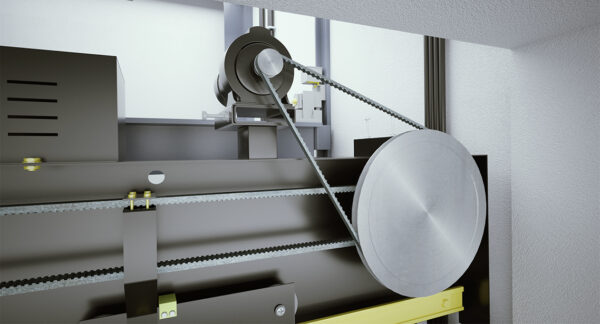

Elevator Door Operation

Incremental rotary encoders are installed inside the motor of the door operation control room to accurately control the open/close position of elevator doors using pulse signals from the encoders.

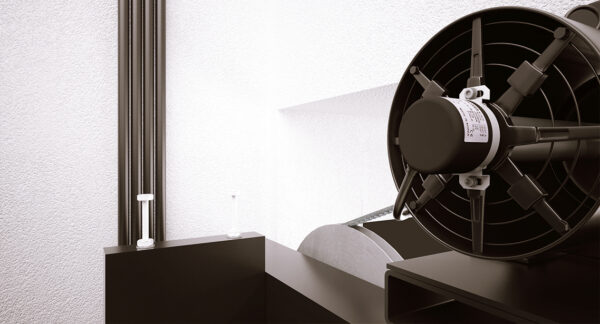

Position Control of Hoists

Rotary encoders are used for positioning control of hoists.
