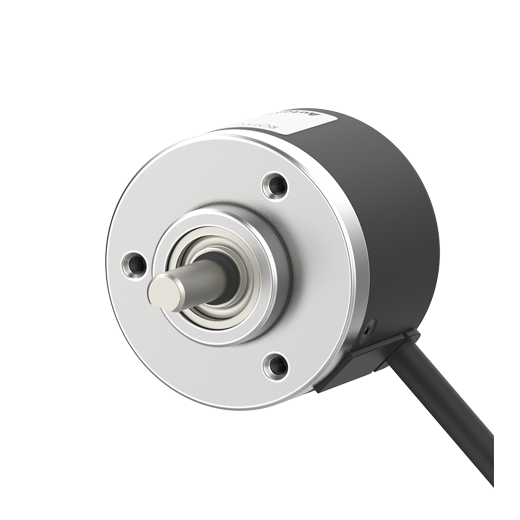

E40S Series-40 mm Incremental Rotary Encoders (Shaft Type)

E40S Series40 mm Incremental Rotary Encoders (Shaft Type)

The E40S series shaft type incremental rotary encoders feature Ø40 mm size housings and can be easily installed in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The encoders are available in various control output options.

40 mm Incremental Easy installation in limited spaces Low shaft moment of inertia Shaft Type

Enquiry

Main features

Ø40mm housing incremental rotary encoders
Shaft, hollow shaft, blind hollow shaft models available
Easy installation in tight or limited spaces
Low shaft moment of inertia
Various resolutions : 1 to 5000 pulses per revolution
Various control output options
Power supply : 5VDC ±5%, 12-24VDC ±5%

Applications

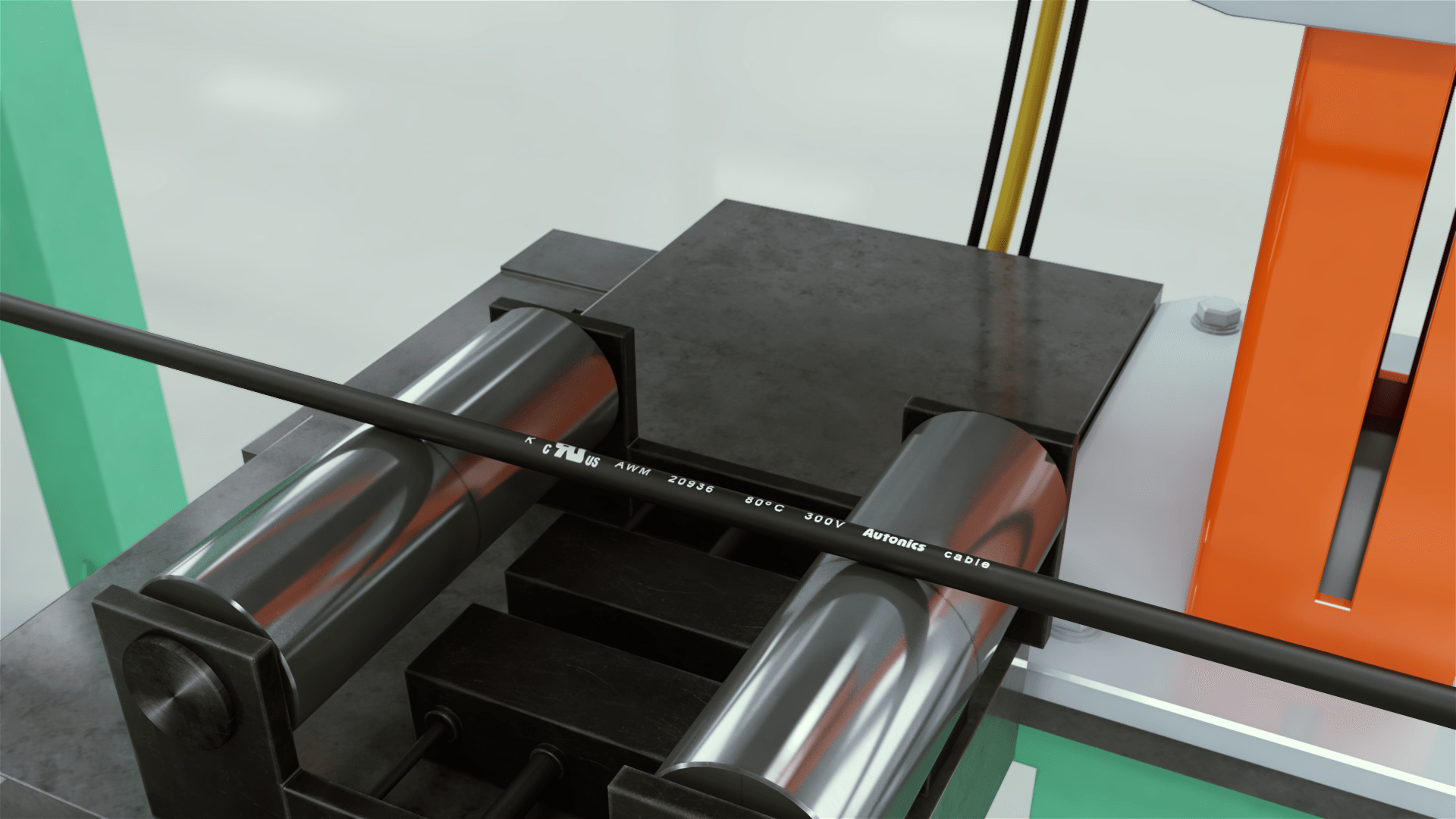

Rubber Extrusion / Plastic Injection Molding Process(Video)

Rubber Extrusion / Plastic Injection Molding Process(Video)

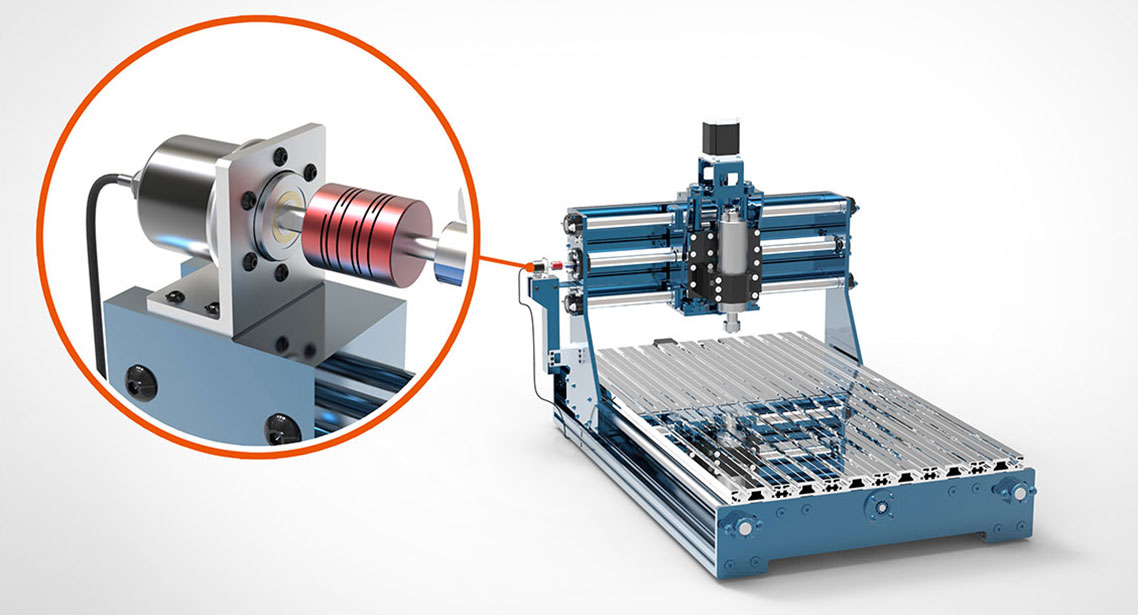

Milling Machines

Rotary encoders and couplings are used to detect and control the shaft rotation on compact-sized milling machines.

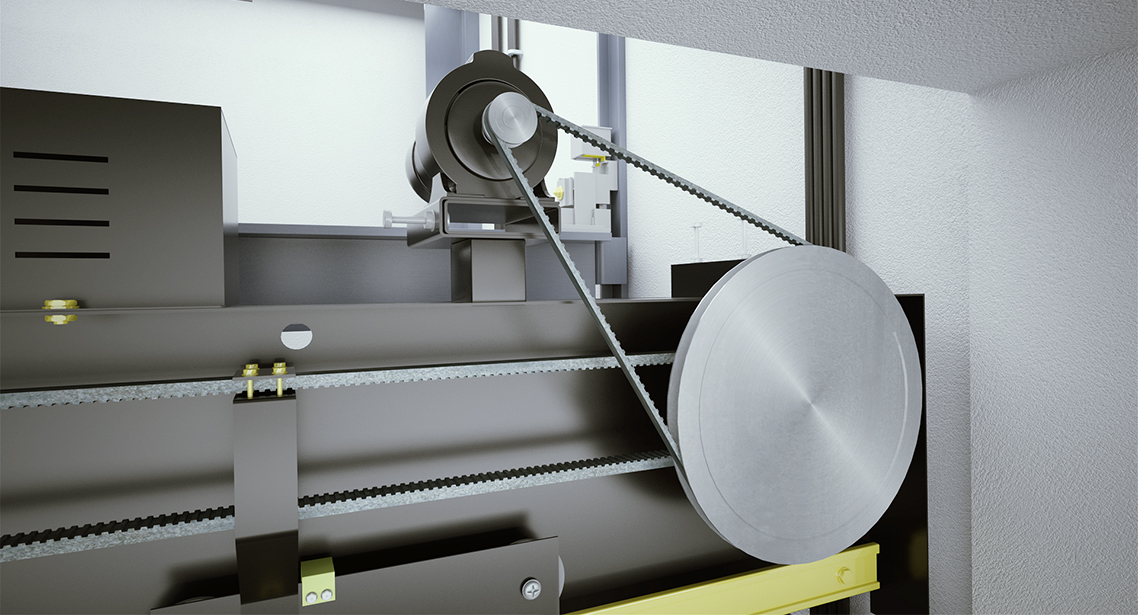

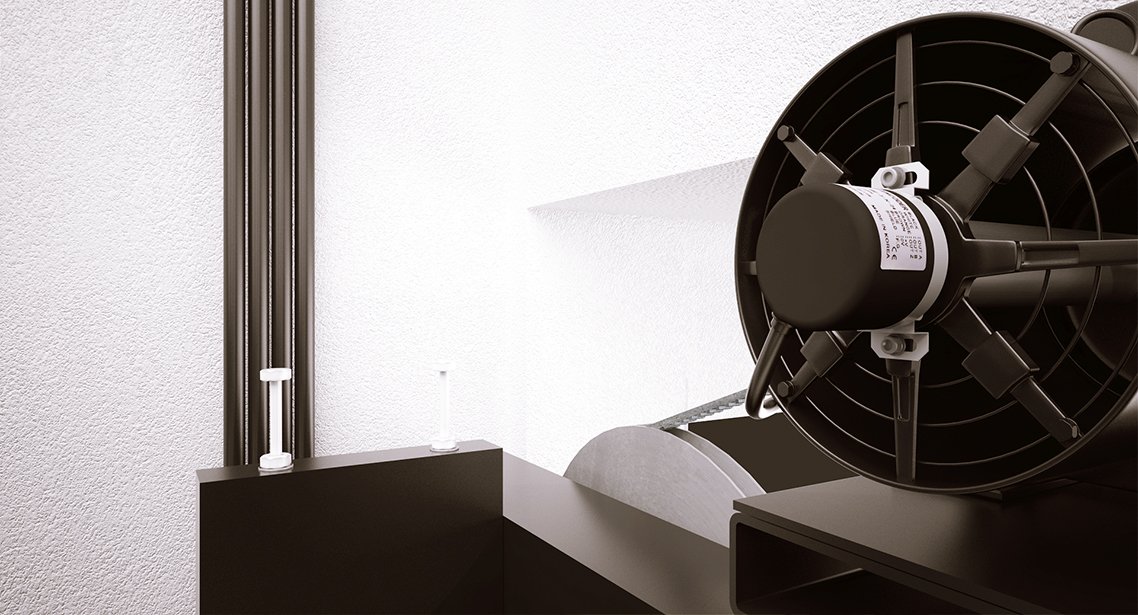

Elevator Door Operation

Incremental rotary encoders are installed inside the motor of the door operation control room to accurately control the open/close position of elevator doors using pulse signals from the encoders.

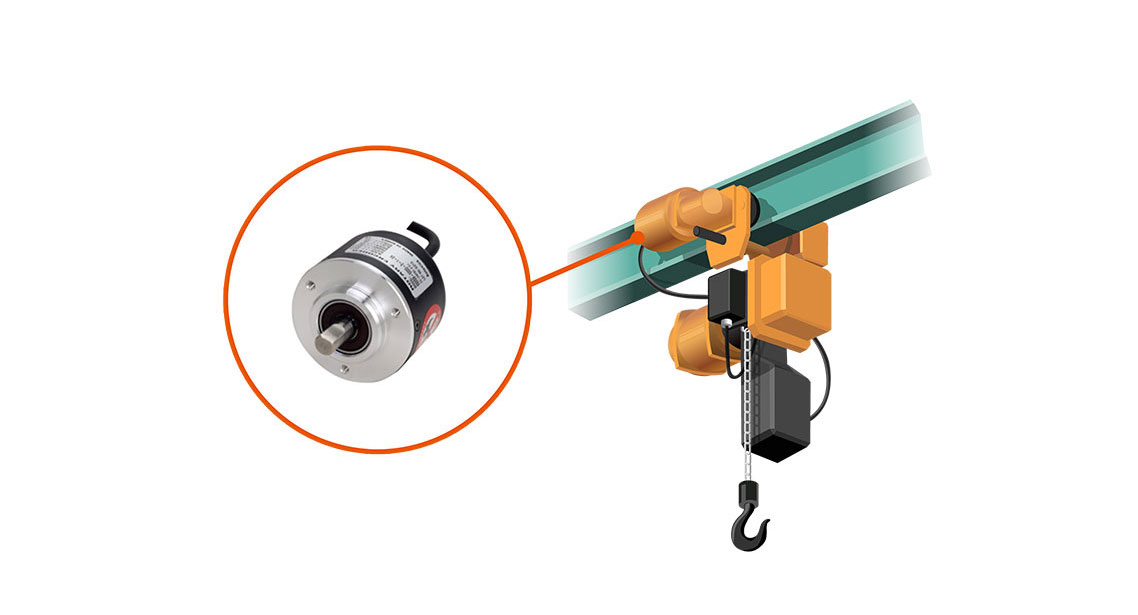

Position Control of Hoists

Rotary encoders are used for positioning control of hoists.
