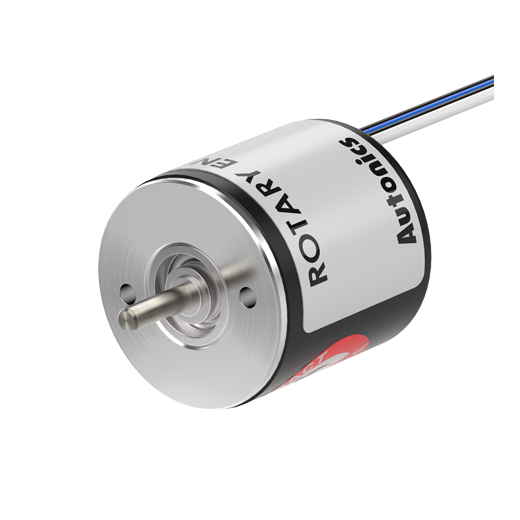

E18S Series-18 mm Incremental Rotary Encoders (Shaft Type)

E18S Series18 mm Incremental Rotary Encoders (Shaft Type)

The E18S series incremental rotary encoders feature ultra-compact Ø18 mm size housings and ultra-lightweight (12 g) design. The small size and light weight allows easy installation in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The miniature encoders are ideal for small machinery including ATMs, bill counters, copy machines, and other compact-sized machinery.

certmarkcertmarkcertmarkcertmark
Enquiry

Main features

  • Ultra-compact (Ø18mm) housing and ultra-lightweight (12g) design
  • Easy installation in tight or limited spaces
  • Low shaft moment of inertia
  • Various resolutions : 100, 200, 300, 400 pulses per revolution
  • Power supply : 5VDC ±5%
    • Ultra Lightweight



    • Ultra-Compact Size



  • Ø18

    18mm Diameter

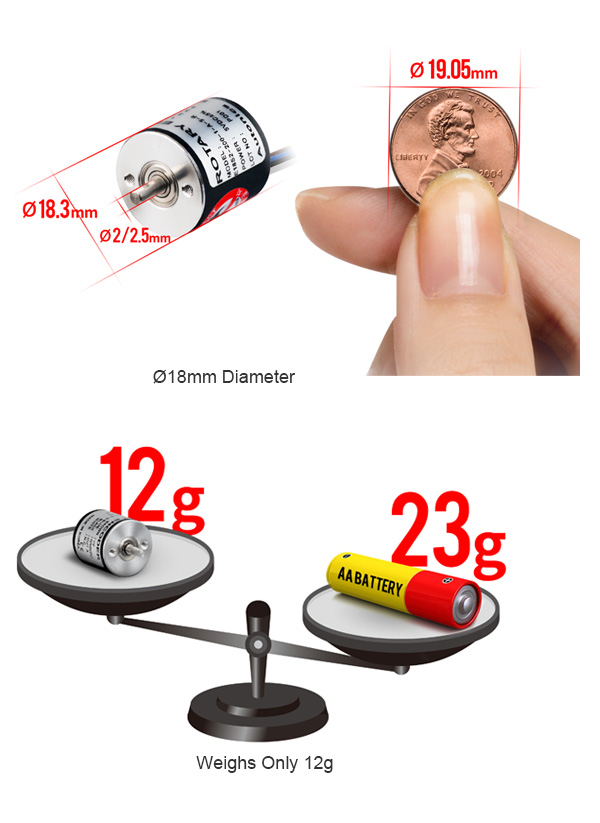

Ultra-Compact (Ø18mm) and Ultra-Lightweight (12g)

The ultra-compact (Ø18mm), ultra-lightweight (12g) encoders are ideal for installation in small machinery and compact applications.

  • Ø18mm Diameter

Applications

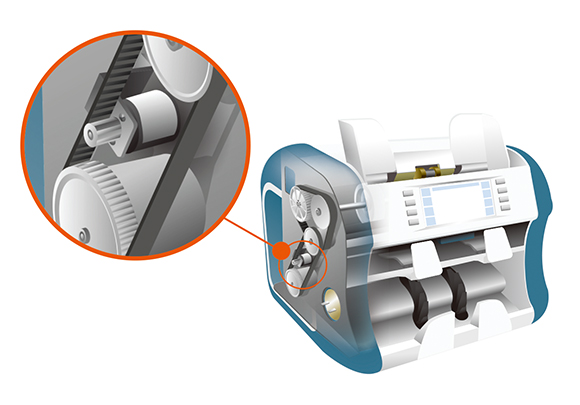

  • Application in automatic bill counting machines
