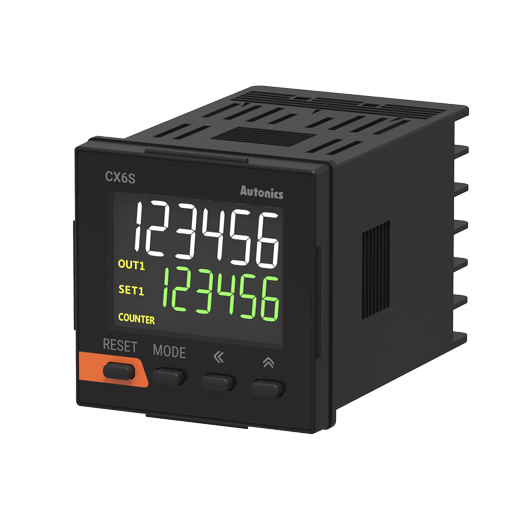

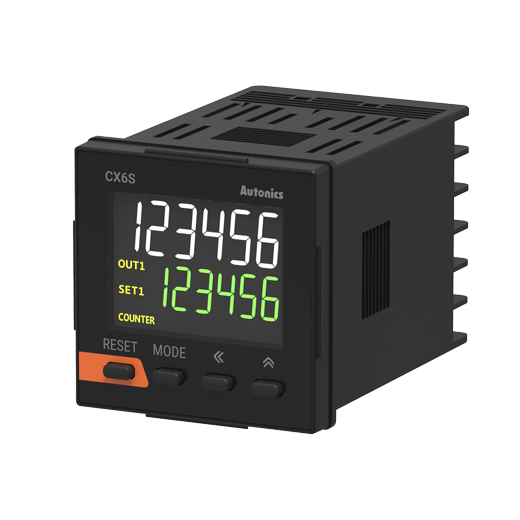

CX Series : Programmable Digital Counter/Timers

CX6S-2P4

  • Display method : Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD
    Setting value display part- 6-digit 7-segment LCD
  • Operation method : Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
  • Terminal : Terminal block
  • Output Operation : SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY
  • Power supply : 100-240VAC~ 50/60Hz
certmark    certmark    certmark certmark





Display method Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD
Setting value display part- 6-digit 7-segment LCD
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal Terminal block
Output Operation SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY
Power supply 100-240VAC~ 50/60Hz
Time operation POWER ON START
SIGNAL ON START
External Power Supply
Max. 12VDC  ±10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 300, 1k, 5k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour
Control output_Type 2-stage preset
Control output_Relay SPST (1a): 2
Protection structure IP50(front panel)
Counter_Counting range -99999 to 999999
Counter_Scale Decimal point up to fifth digit
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 162g(approx. 117g)
Enquiry
Categories: ,

Main features

[Common Features]

  • LCD display with easy-to-read white PV characters
  • Input type: voltage input (PNP) / no-voltage input (NPN) selectable (through parameter setting), universal voltage input type available
  • One-shot output time: 0.01 to 99.99 seconds (in 0.01 second increments)
  • Compact rear-length size (64.5 mm)

[Counter Functions]

  • Prescale value setting range: 0.00001 to 99999.9
  • Various input/output modes (11 input modes, 11 output modes)
  • Set start point function
  • Total count display mode: displays current count and aggregate count simultaneously

[Timer Functions]

  • Various output modes (15 output modes)
  • Time setting range: 0.001 second to 99999.9 hours
  • Set output time to 0 feature



Korea Design Registration 30-0999139

    • Counter + Timer Functions



    • LCD Display



    • Reduced Rear-Length



    • Input Selection



    • Input Range



  • Various Timing Range

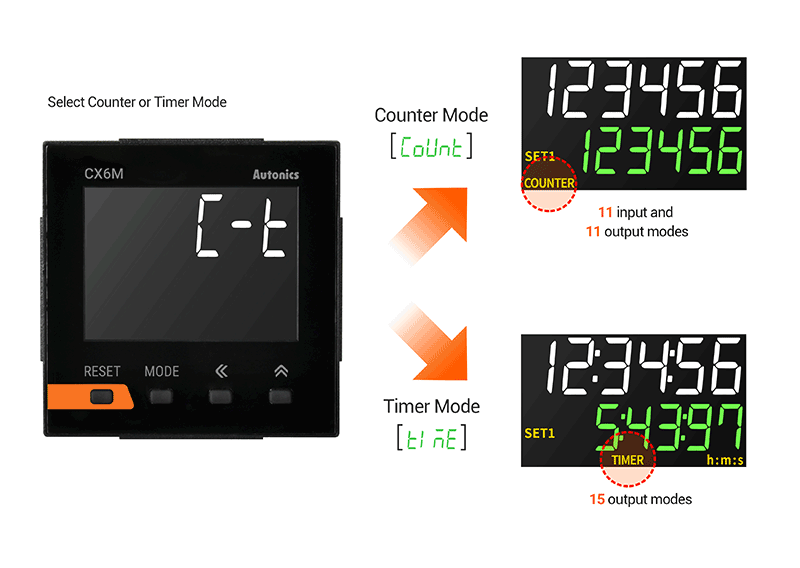

Counter + Timer Functions

The CX series integrates both counter and timer functions, allowing flexible operation depending on application requirements.

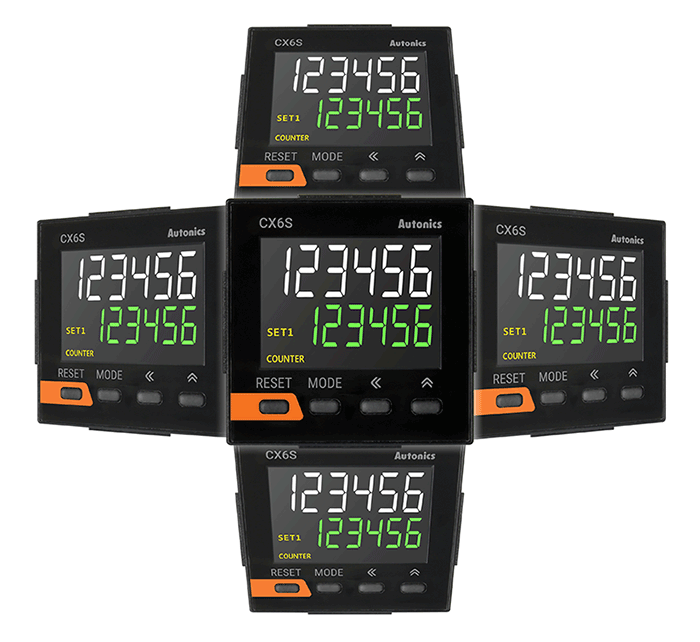

LCD Display with Easy-to-Read Characters

The LCD display offers high visibility from various viewing angles and clearer status readings.

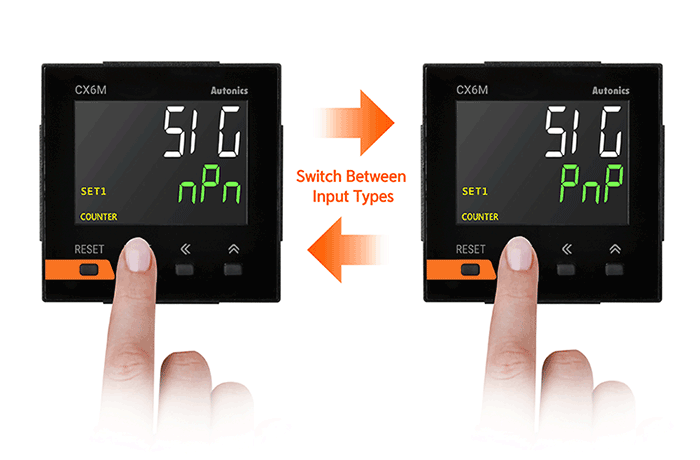

Select NPN/PNP Input Type Through Parameter Settings

Users can switch between NPN or PNP input types through parameter settings, allowing more flexibility for users.

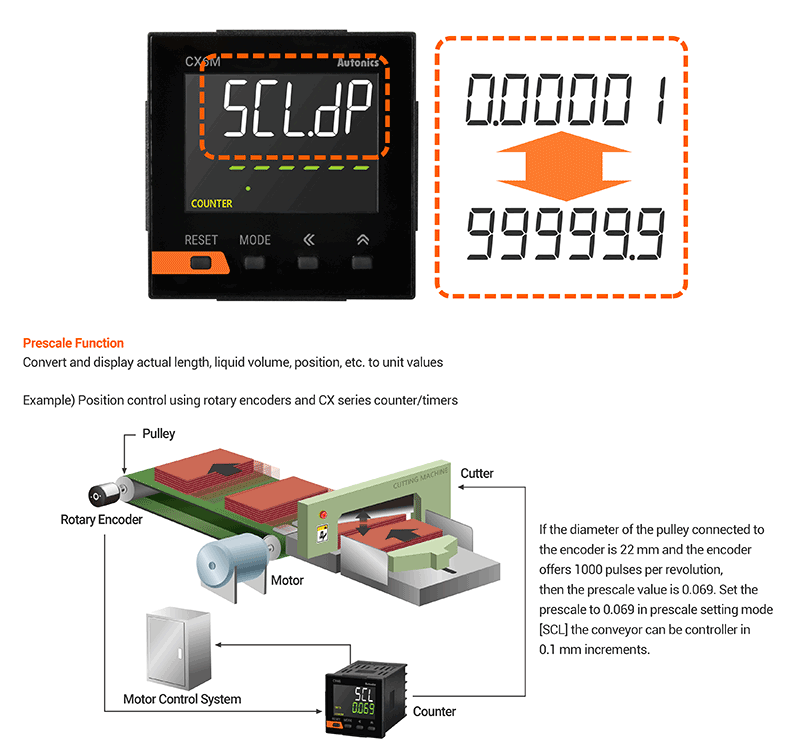

Wide Prescale Value Setting Range

The prescale value range can be set from 0.00001 to 99999.9, for applications requiring precise control.

  • Wide Prescale Value Setting Range

Compact Design with 64.5 mm Rear-Length

The rear-length size has been reduced by up to 28% compared to similar sized counter/timer models from Autonics. The 64.5 mm rear-length size allows easy installation in limited spaces.

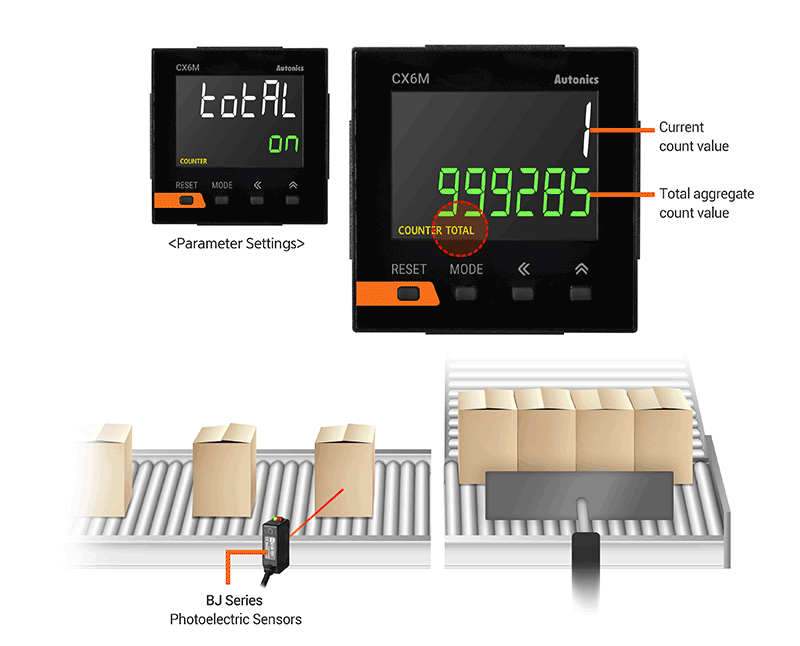

Total Count Display Mode (Counter Mode)

The total count display mode allows the counters to display the total aggregate count value in addition to the current count value.

Except universal voltage input type.

Wide Time Setting Range (Timer Mode)

The timer can be set from 0.001 second to 99999.9 hours, allowing application in diverse environment settings.

Applications

  • Cutting Machines

    Cutting Machines

    Counter/timers used to control the cutting length and quantity
