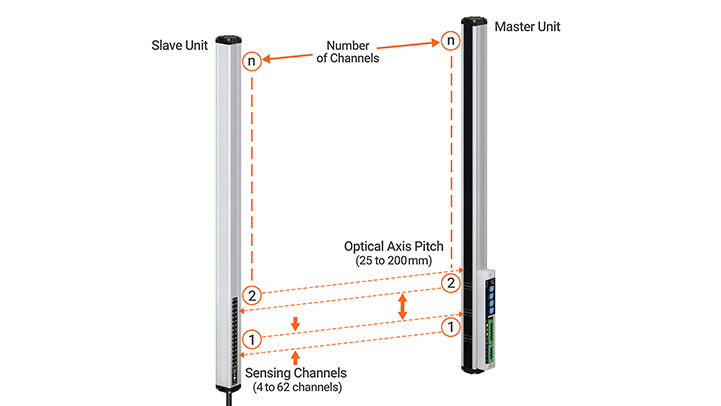

• • Customized Models Available

    Users can order customized models with different sensing channels and optical axis pitch depending on user requirements.

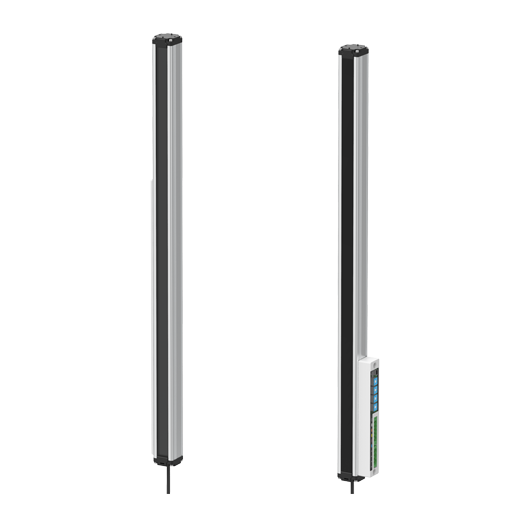

• Double Scan Method for Stable Glass Substrate Detection

  The master and slave units contain both emitter and receivers which allow detection of light amount from both sides, offering high optical detection performance. This double scan method allows detection of thin glass substrates with low levels of light reflection.

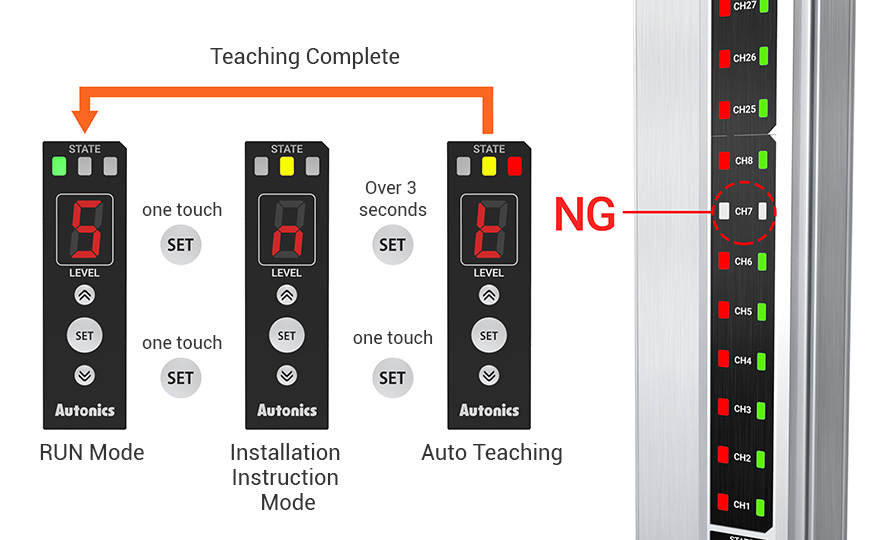

Installation Instruction Mode and Auto Teaching Function

The installation instruction mode allows users to check if the detection target object is in proper position using the output indicators. The auto teaching function allows all sensing channels to be set in uniform light amount for optimal sensitivity setting.

Sensing Level Setting to Minimize Influence from Bent Glass or Scattered Reflections

The sensing level setting allows optimal sensing with minimal influence from bent glass or scattered reflections. The sensing level can be set in 9 different sensitivity levels for stable detection in various environment settings. If the mapping sensor or cassettes are bent, sensitivity adjustments can be made without removing the glass substrates.

CC-Link, EtherCAT Communication Protocol Support

The units offer support for CC-Link or EtherCAT communication support and also offer options for connector type connection or terminal type connection.

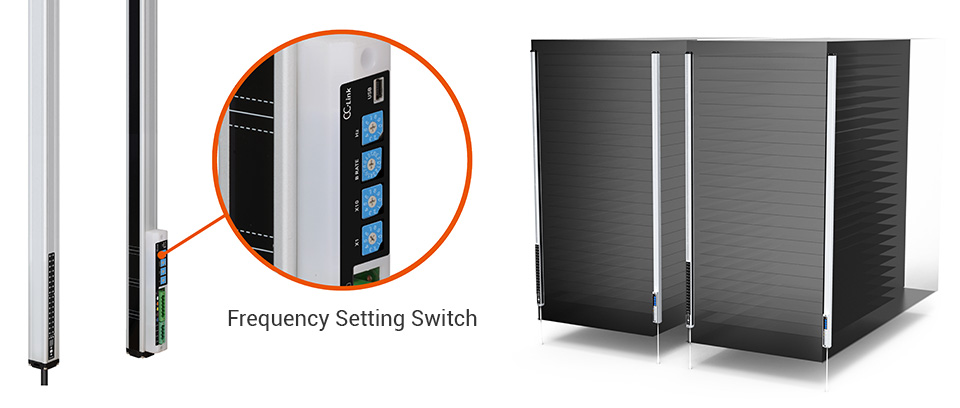

Mutual Interference Prevention Function

When 2 or more units need to be installed near each other, users can set different frequency for each unit to prevent malfunction from mutual interference.

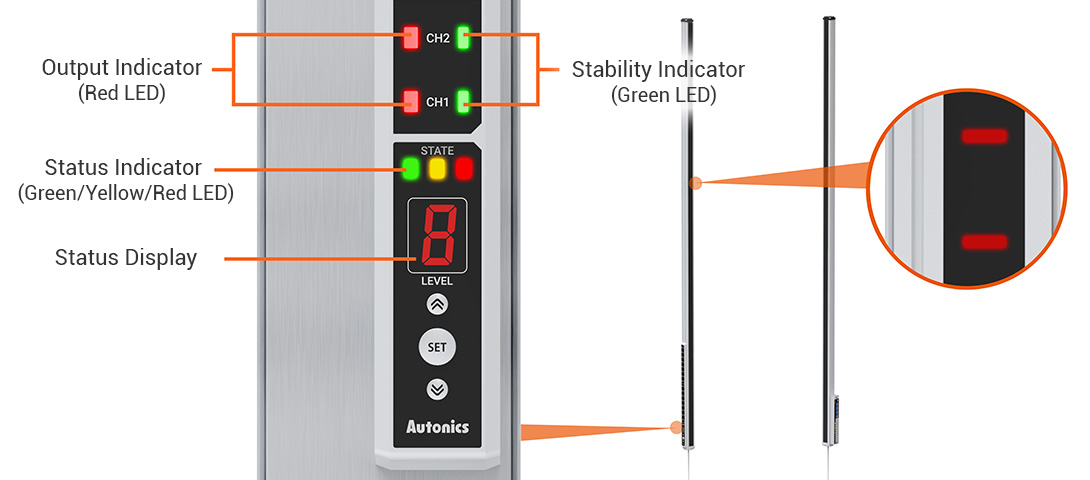

Check Operation Status with Bright Indicators

The bright indicators allow users to easily check operation and communication status even from long distances.
