BW Series General Purpose Area Sensors

BW SeriesGeneral Purpose Area Sensors

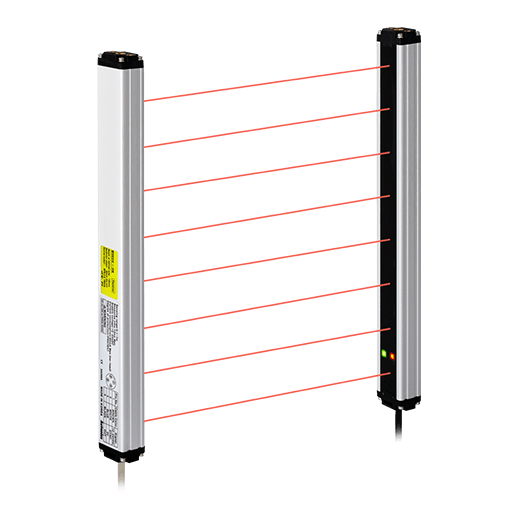

    The BW series general purpose area sensors feature long sensing distance up to 7 m and are available in 22 different configurations based on the number of optics, optical pitch, and detection area size. With ambient illuminance limit of 100,000 lux, the sensors can operate error-free even under direct sunlight. Bright LED indicators are present in both the emitter and the receiver, making it easy to identify the operation status. Mutual interference prevention is possible with master/slave connection method, allowing multiple units to be installed in a row.

    certmarkcertmark
    22 configurations Ambient illuminance Area Sensors Long sensing distance
    Enquiry
    Categories: , , ,

    Main features

    • Ambient illuminance : 100,000lux (upgraded feature)
    • Long sensing distance up to 7m
    • 22 configurations (number of optics : 4 to 48/optical pitch : 20, 40mm /detection area : 120 to 940mm)
    • 20mm optical pitch minimizes non-detection area (BW20-□)
    • Bright LED indicators on emitter and receiver
    • Mutual interference prevention function, self-diagnosis function, stable operation test
    • IP65 protection structure (IEC standard)
      • 100,000 lx

        Max. AmbientIlluminance



      • Minimal Influencefrom EnvironmentConditions



      • 7M

        Long SensingDistance



    • Bright LEDIndicators

    • Compatibility Notice for BW Series New and Previous Models : The emitter and receiver are not compatible between new and previous models. Please make sure that the emitter and the receiver are of the same new or previous model pair when setting up the units.

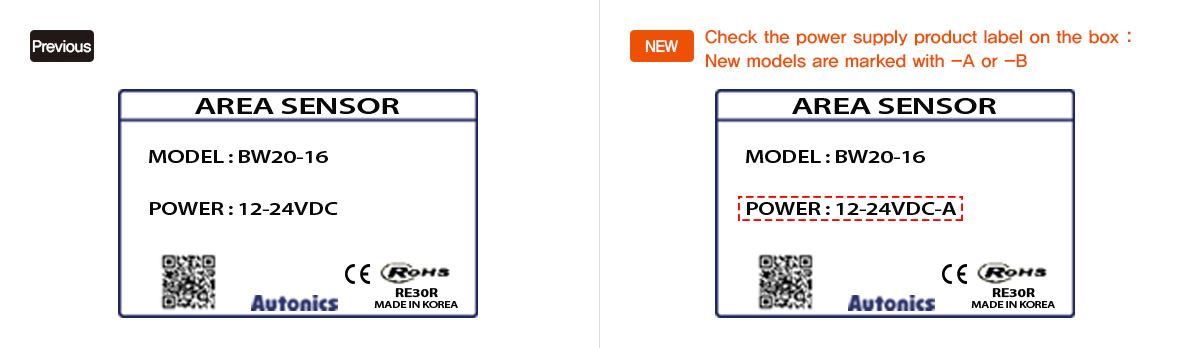

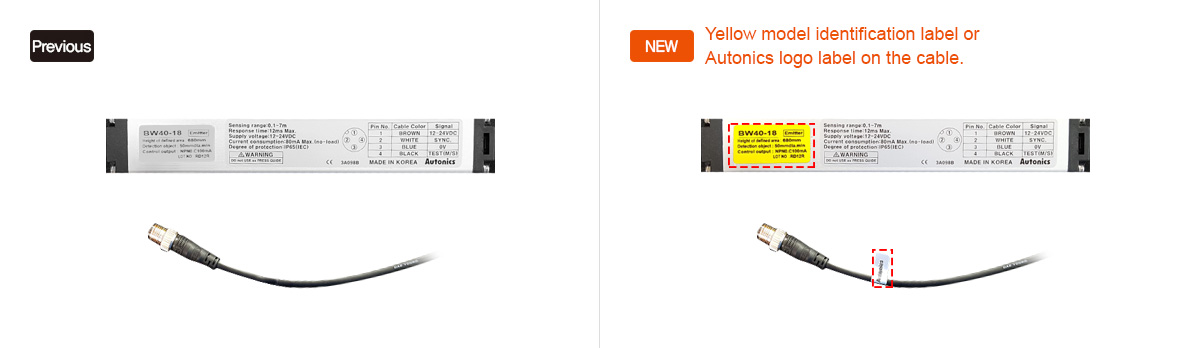

    How to distinguish between new and previous models

    • NEW : Yellow model identification label or Autonics logo label on the cable.
    • NEW : Check the power supply product label on the box : New models are marked with –A or -B

    Stable and Reliable Sensing in Diverse Conditions

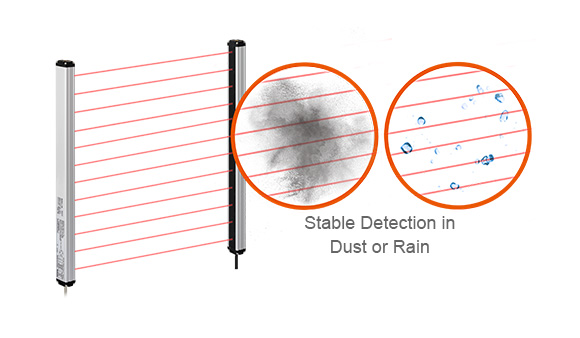

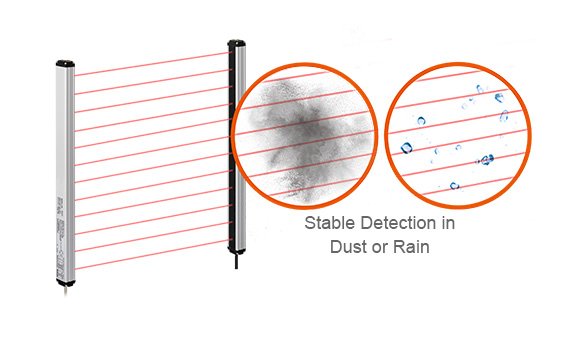

    High ambient illuminance limit (up to 100,000lx) allows error-free operation even under direct sunlight or strong incandescent light. High sensitivity optics allows stable detection in dust or rain.

      • Up to 100,000lx



    • Stable Detection in Dust or Rain

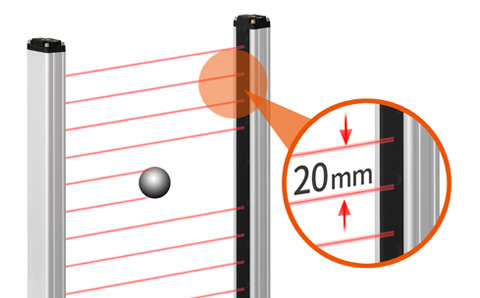

    20mm Optical Pitch Minimizes Non-Detection Area (BW20-□)

    • 20mm Optical Pitch Minimizes Non-Detection Area(BW20-□)

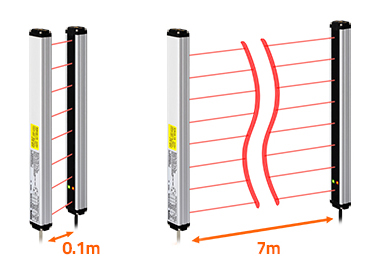

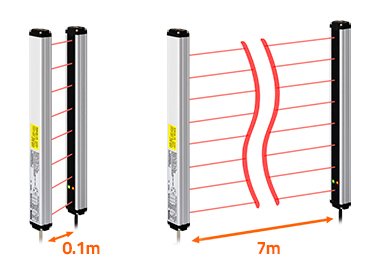

    Wide Detection Range from 0.1m to 7m

    The sensors feature a wide detection range from 0.1m to 7m, for application in diverse environments.

    • Wide Detection Range from 0.1m to 7m

    • Bright LED Status Indicators

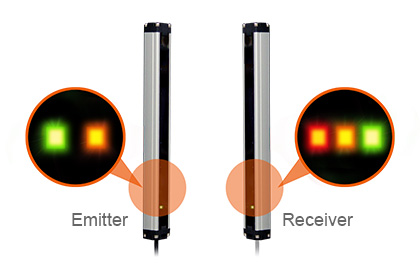

      Bright LED indicators on the emitter and receiver allow users to clearly identify operation status from various angles and distances.

      Bright LED Status Indicators

    Applications

    • Transfer of Packaged Goods

      Cross-beam area sensors are used to inspect the filling level of potato chips in the bags during transport process.
