Main features
- Ultra-compact size
- Various shapes available for installation flexibility (K, F, R, U, L types)
- Minimize detection errors and improved visibility
– Sensing side and body level has been improved to minimize detection errors occurring from foreign substances
– Operation indicators viewable from multiple directions - Indicator ON when light received and indicator ON when light blocked models available
- High shock and vibration resistance
– shock resistance: 15,000 m/s² (approx. 1,500G), vibration resistance: 10 to 2,000 Hz (1.5 amplitude) - Selectable operation modes (Light ON/Dark ON)
- High-speed response frequency: 2kHz
Korean Design Patent : 30-1066605, 30-1066606
-
Compact Size
-
Cable Type
-
High Speed Response
-
Protection Window
High Durability
-
-

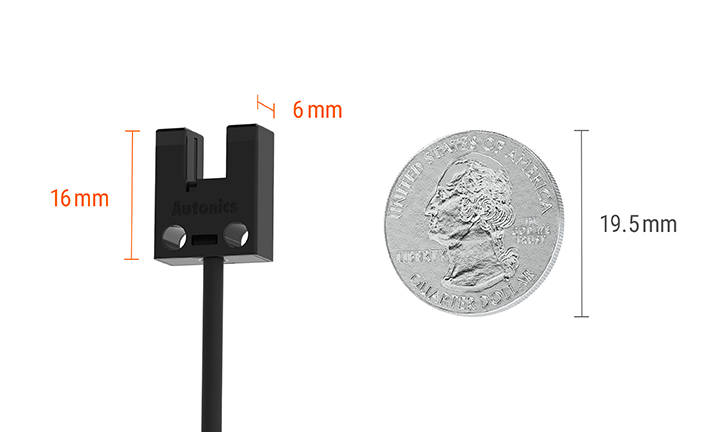

Ultra-compact Size
The photomicro sensors with ultra-compact size can be installed in limited spaces.
-
-

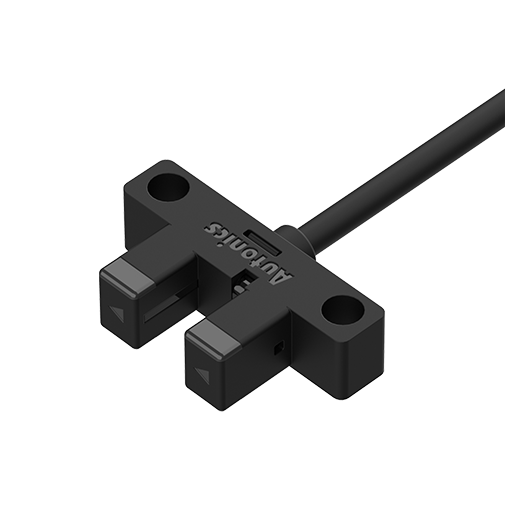

Various Shapes Available Offering Installation Flexibility
5 different shape models are available for installation in diverse applications
Indicator ON when Light Received and Indicator ON when Light Blocked Models Available
Indicator ON when light received and indicator ON when light blocked models are available depending on user needs or applications.
-
-
Indicator ON When Light Received (BS3-□□M-□)
-
-
Indicator ON When Light Blocked (BS3-□□R-□)
-
-

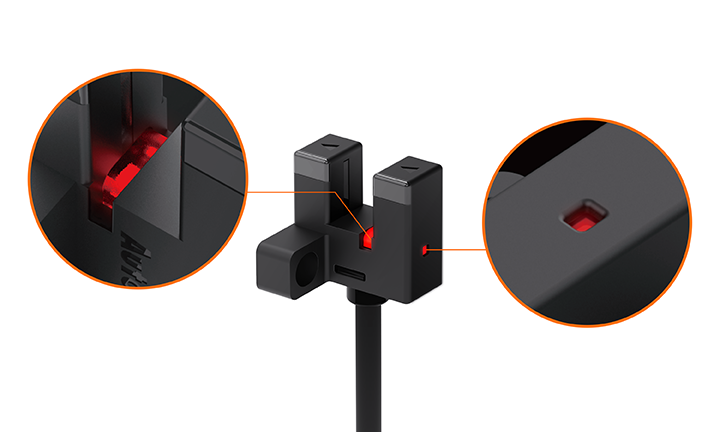

Operation Indicator on Multiple Directions
The operation indicators are viewable from multiple directions allowing users to identify operation status in various environment settings.
-
-
High Resistance to Shock and Vibration
The sensors offer vibration resistance up to 2,000 Hz and shock resistance up to 1,500, which allows for installation in harsh environments.
-

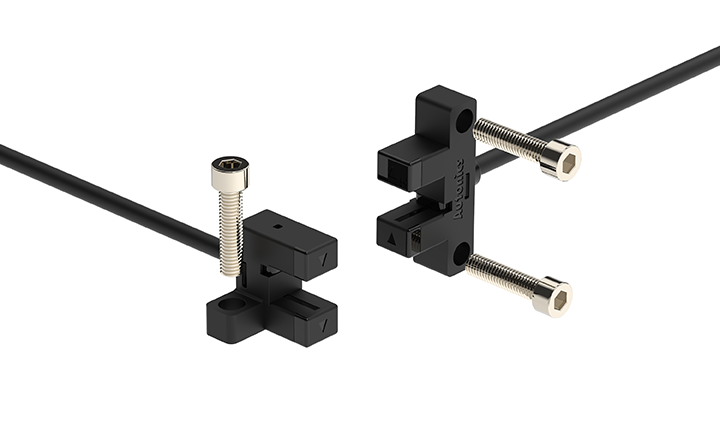

Easy Installation with M3 Bolt Mounting
The sensors can be easily installed or replaced with M3 bolt mounting.

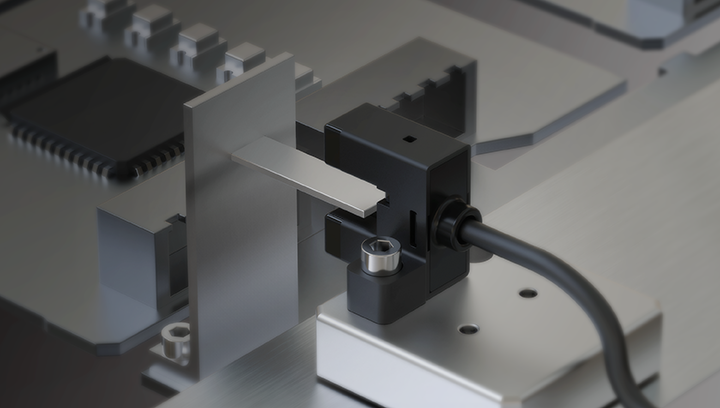

Applications
-
PCB Transport Lines
Photomicro sensors are used to detect location on transport trays on PCB loader machines.
-
Milling Machines
Photomicro sensors and stepper motors are used to control X-Y axis shafts in compact sized milling machines.
-
Laser Marking on Semiconductor Parts
Photomicro sensors and stepper motors are used to move and check X-Y axis location of trays during laser marking of semiconductor parts.
