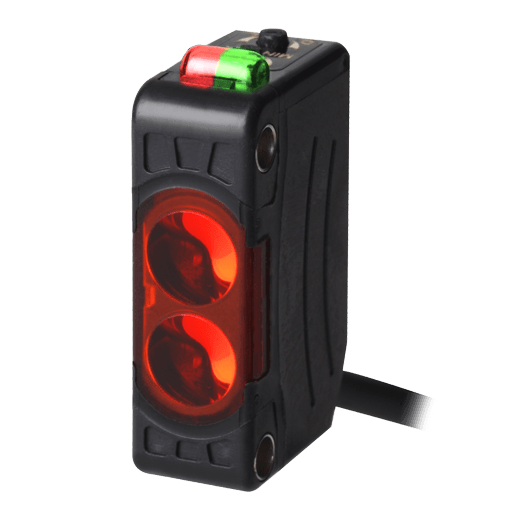

BJ Series: Compact High Performance Photoelectric Sensors

    The BJ series compact photoelectric sensors feature high performance and excellent noise immunity for accurate and reliable presence detection. Light ON/Dark ON operation mode switch and sensitivity adjusters are available for easy configuration and set up (except BJG-DDT). The sensors are available in various types and options, making it ideal for diverse applications. The BJ series is available in long distance type, BGS (background suppression) reflective type, transparent glass sensing type, and micro spot types, and the sensors are available in cable types and connector types (long distance type models).

    certmarkcertmark
    Compact IP65 protection structure Light ON/Dark ON ong distance type Photoelectric Sensors
    Enquiry
    Categories: , ,

    Main features

    Common Features

    • Compact size : W10.6×H32×L20mm
    • Light ON/Dark ON operation mode switch (except BJG30-DDT)
    • Sensitivity adjuster (except BJG30-DDT)
    • Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit
    • Mutual interference prevention function (except BGS reflective type)
    • Excellent noise immunity and minimal influence from ambient light
    • IP65 protection structure (IEC standard)/IP67 for BJ-C connector types



    Long Distance Type

    • High performance lens with long sensing distance
    • Through-beam type : 15m
    • Diffuse reflective type : 1m
    • Polarized retroreflective type : 3m (MS-2A)
    • M.S.R. (Mirror Surface Rejection) function (polarized retroreflective type) for detecting mirrors or highly reflective targets
    • Mutual interference prevention function (except through-beam type)



      BGS Reflective Type

      • BGS (background suppression) minimizes detection errors from background objects and the color or material of target objects. Also the detecting distance can be configured with the sensitivity adjuster.
      • Visible light source allows users to identify the sensing area, and the tiny spot size minimizes influence from surrounding objects



      Transparent Glass Sensing Type/Micro Spot Type

      • Stable detection of transparent targets (LCD, PDP, glass etc.) (transparent glass sensing types)
      • Check sensing area with visible micro spot (micro spot types)
      • Detect tiny objects (minimum target size : Ø0.2mm copper wire)
        •                                                                M.S.R Function

            Background Suppression(BGS) Sensing         Mirror Surface Rejection (MSR)                 Detect Transparent Targets(BJG30-DDT)       Detect Tiny Targets(Micro Spot Type)



        •                                                                                                                                         IP67

                                                   Dark ON/Light ONSwitch                                   Improved Noise Immunity                               Protection Rating(connector type)

      • Various Sensing Distance and Target Sizes

        Various Sensing Distance and Target Sizes
      Type Long distance sensing type Transparent glass sensing type BGS reflective type Micro spot type
      Sensing type Through-beam type Retroreflective type Diffuse reflective type Diffuse reflective type BGS reflective type Narrow beam reflective type
      Sensing distance 15m, 10m / 7m 0.1 to 3m 1m, 300mm, 100mm 30mm, (15mm)*1 10 to 30mm, 10 to 50mm 30 to 70mm, 70 to 130mm
      Sensing target opaque material>Ø12 / Ø8 mm opaque material
      >Ø75 mm      		 opaque,
      translucent material      		 transparent glass,
      opaque,
      translucent material      		 opaque,
      translucent material      		 >Ø0.2 mm opaque,
      translucent material

      1. The sensing distance for transparent glass 50 x 50 mm, t=3.0 mm.

      Refer catalogue for details and size of the sensor according to the sensing distance.

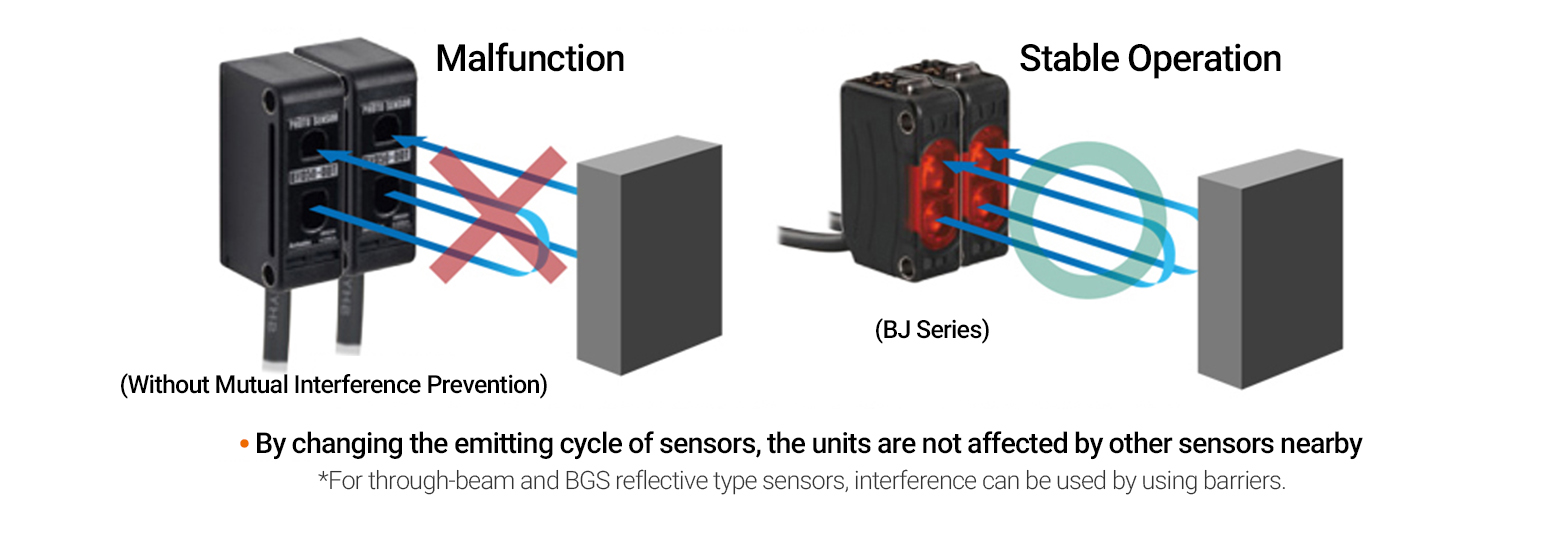

      • Mutual Interference Prevention Function

        Mutual interference prevention function allows multiple sensor units to be installed close to each other. (Except through-beam, BGS reflective types)

        Mutual Interference Prevention Function

      Excellent Noise Immunity and Minimal Influence from Ambient Light

        • Improved noise immunity by using digital filters with noise evasion algorithmMinimal influence from ambient light with ambient light prevention algorithm

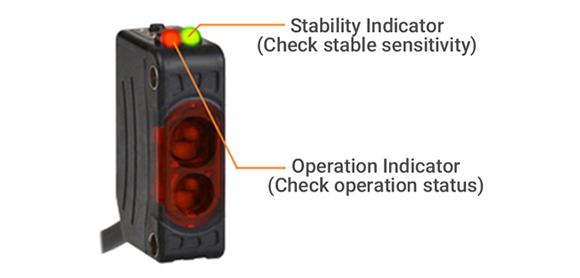

        • Operation and Stability Indicators                                                                                             Visible Light Source to Check Detection Area

                                                                                                                   Available in micro spot types, BGS reflective types, and diffuse reflective types (BJ300-DDT models)

        • Stability Indicator(Check stable sensitivity), Operation Indicator(Check operation status)Visible Light Source to Check Detection Area

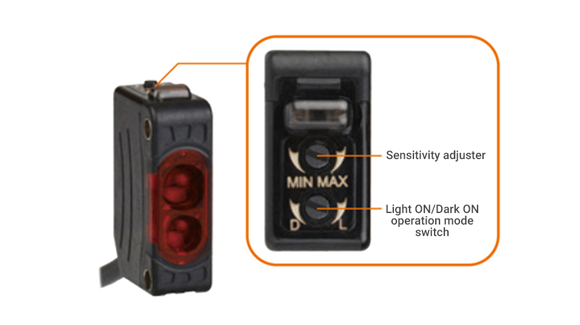

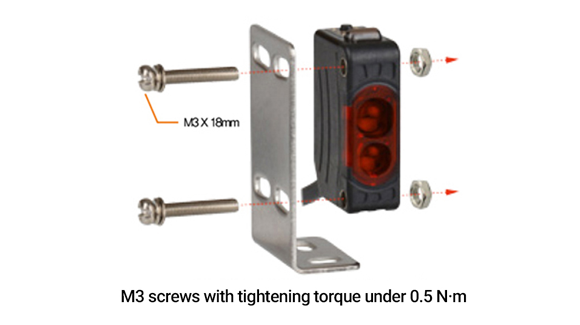

      Sensitivity Adjuster and Operation Mode Switch                                                                        M3 Bolt Side Mounting Method

        • Sensitivity adjuster is not available in transparent glass sensing types.

          Sensitivity Adjuster and Operation Mode SwitchM3 Bolt Side Mounting Method
