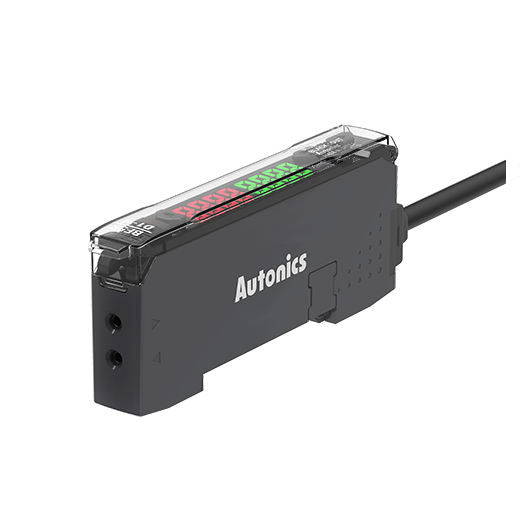

BF5 Series High Performance Single/Dual Digital Display Fiber Optic Amplifiers

BF5 SeriesHigh Performance Single/Dual Digital Display Fiber Optic Amplifiers

The BF5 series fiber optic amplifiers are available in single and dual display models. The units feature 5 different response speed settings, for flexible and reliable detection of fast moving targets or small objects. With integrated mutual interference prevention, reliable detection is possible with multiple units (up to 8 units) with connection using side connectors. Other features include saturation prevention function, inverted display, and simple sensitivity adjustment settings. Red, green, and blue LED light source models are available for diverse applications.

certmark   certmark   certmark
Enquiry

Main features

  • Available in dual and single display models
  • Dual digital display for displaying current value and set value (BF5□-D)
  • 5 response speeds – Ultra-fast mode (50㎲), fast mode (150㎲), standard mode (500㎲), long-distance mode (4ms), ultra-long-distance mode (10ms)
  • Display range : 0-4000 (standard mode), 0-9999 (long-distance mode)
  • Saturation prevention function : prevent errors from saturation of received light
  • Inverted display : invert displays depending on installation for easier reading
  • Long term stability without diode deterioration and minimal influence from temperature changes
  • Simple sensitivity adjustment settings
  • Multiple sensitivity setting modes – Auto-tuning, one-point teaching (maximum sensitivity), two-point teaching, position teaching
  • Mutual interference prevention allows adjacent installation (up to 8 units) with side connectors
  • Auto channel setting function for easy configuration of multiple units
  • Various LED light sources (red, green, blue) available for diverse applications
  • Slim and compact design (W10×H30×L70mm)
    • Dual Display(BF5□-D)



    • 50㎲

      High-SpeedResponse



    • Simple SensitivityAdjustment



    • Mutual InterferencePrevention



  • 3 Color LightSources

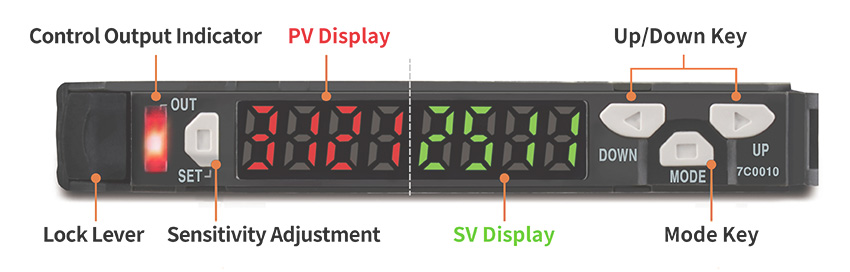

Dual Digital Display

With the dual digital display screen, users can easily identify the present value (PV) and set value (SV)

  • Dual Digital Display

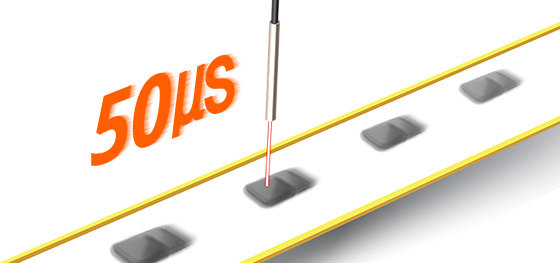

High-Speed Response Rate of 50㎲ in Ultra-Fast Mode

The sensors feature 5 different response speeds : Ultra-fast mode (50㎲), fast mode (150㎲), standard mode (500㎲), long-distance mode (4ms), ultra-long-distance mode (10ms)

  • High-Speed Response Rate of 50㎲ in Ultra-Fast Mode

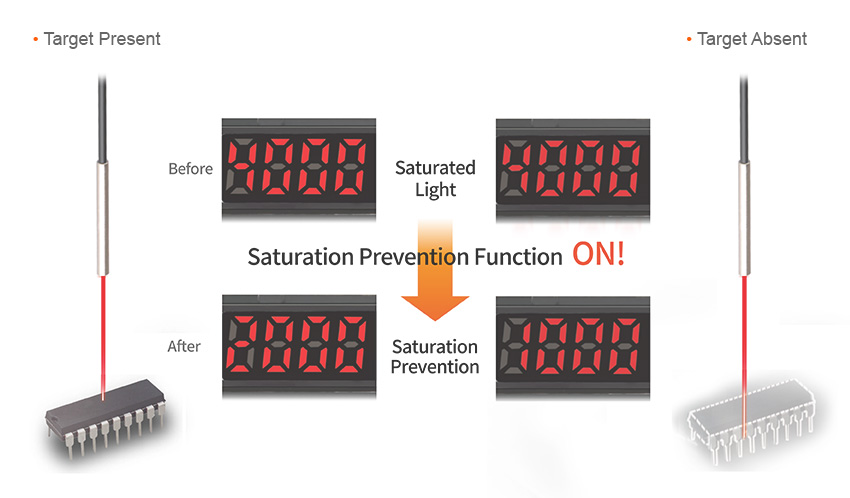

Saturation Prevention Function

When the detection transparent objects or if the target moves out of position, the received light intensity may increase.
The saturation prevention function prevents errors from light saturation by adjusting to the difference in the received light.

  • Target Present : Before - Saturated Light → Saturation Prevention Function ON!, After - Saturation Prevention

Red, Green, Blue LED Light Sources Available

Depending on the color of the target object or ambient lighting conditions, users can choose between red, green, and blue LED light source models for precise and accurate detection

Durable and Reliable

Long term stability without diode deterioration and minimal influence from temperature changes

  • Durable and Reliable

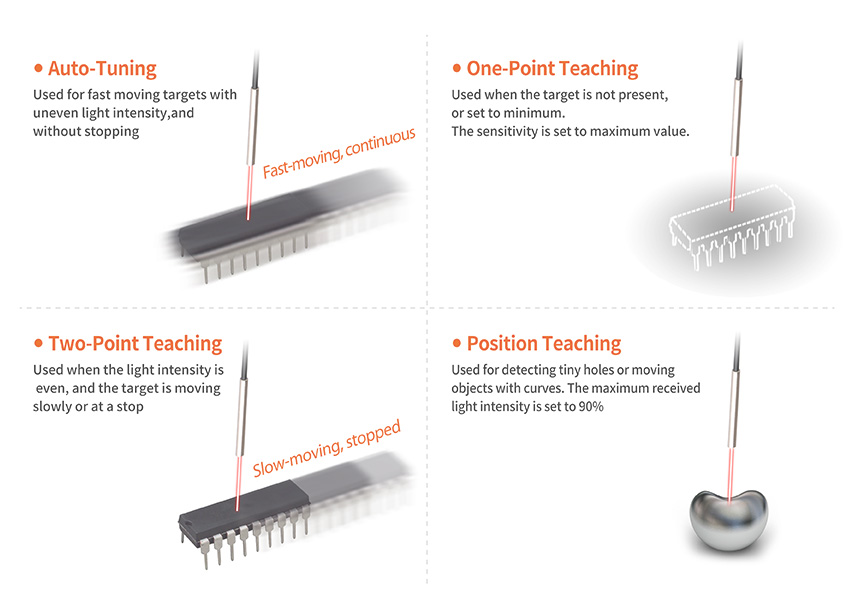

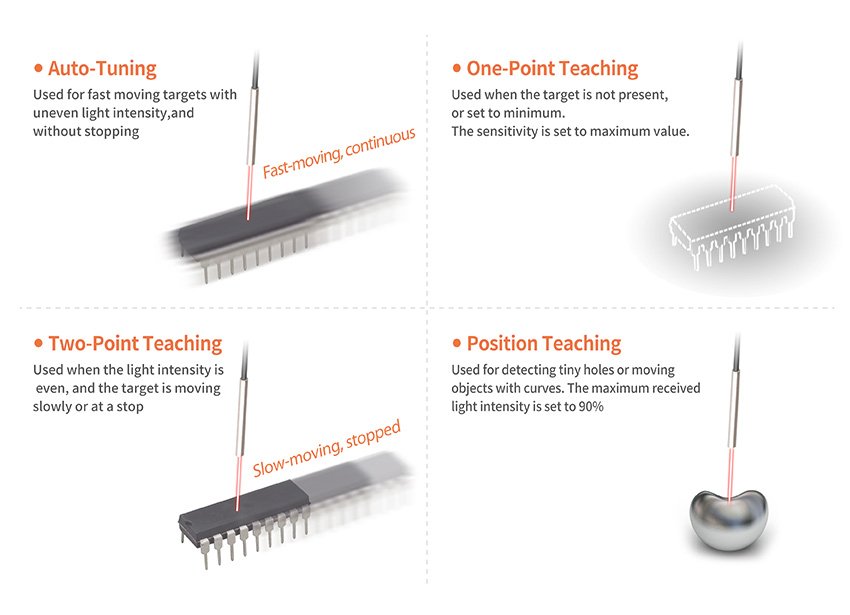

Various Sensitivity Setting Modes

Depending on the environment, users can choose between auto-tuning, one-point teaching (maximum sensitivity), two-point teaching, and position teaching modes.

  • Various Sensitivity Setting Modes - See below for more details

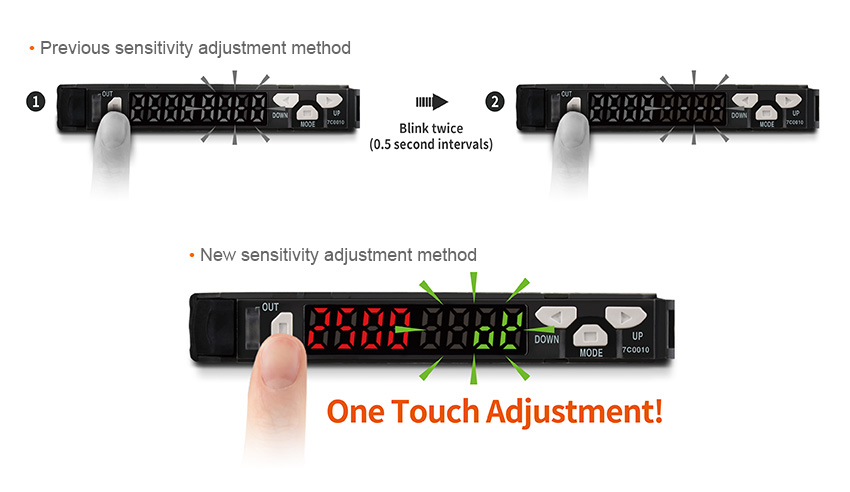

Simple Sensitivity Adjustment

  • Previous sensitivity adjustment method : Blink twice (0.5 second intervals), New sensitivity adjustment method : One Touch Adjustment !

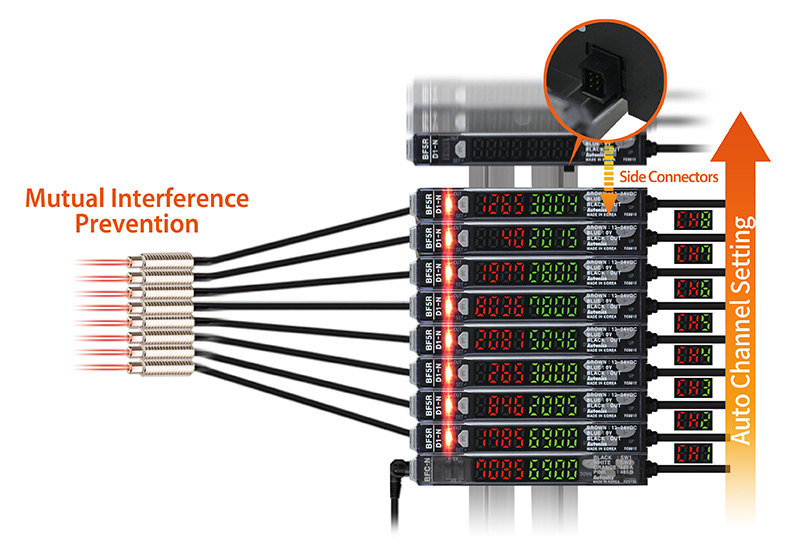

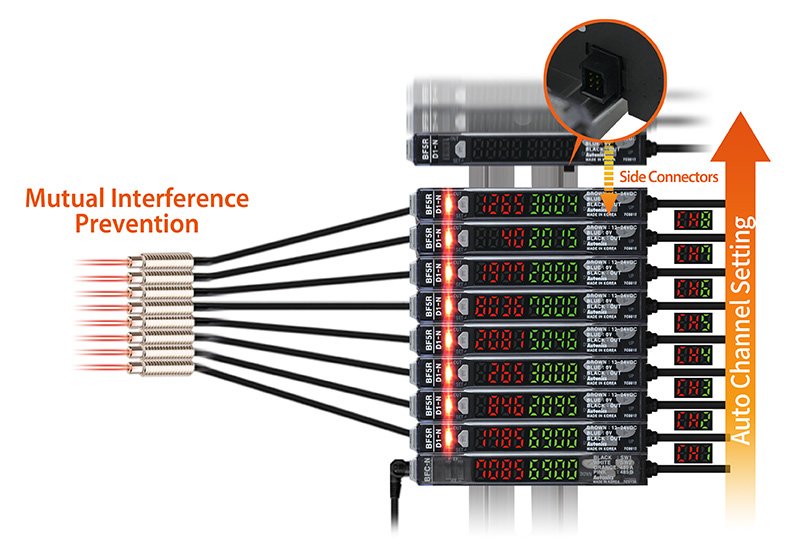

Mutual Interference Prevention and auto Channel Setting

Mutual interference prevention allows adjacent installation (up to 8 units) using side connectors. When power is supplied, the connected units are automatically assigned to different channels.

  • Mutual Interference Prevention and auto Channel Setting

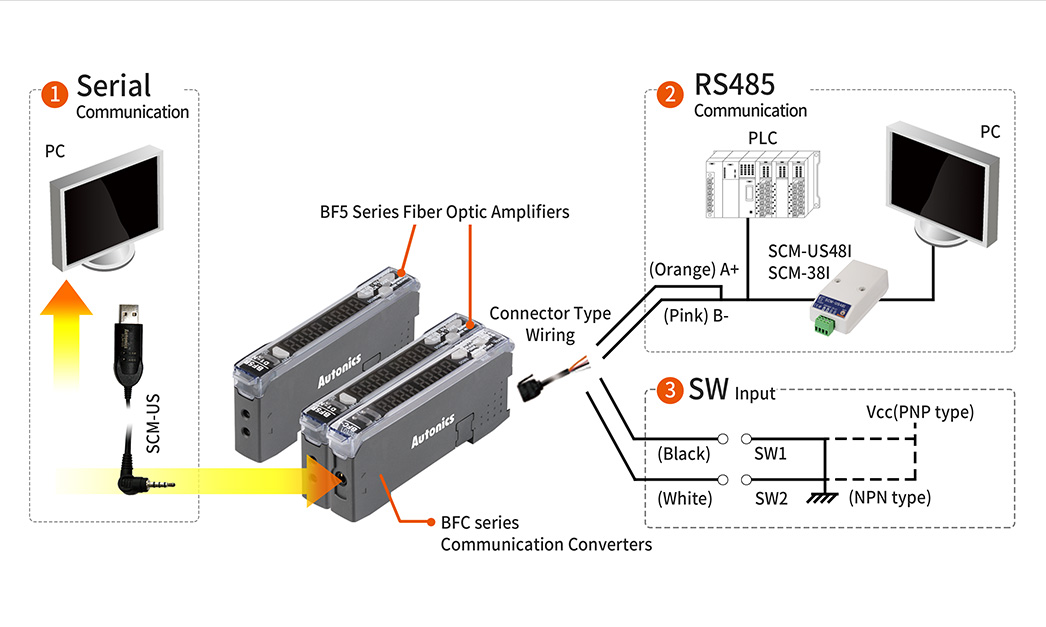

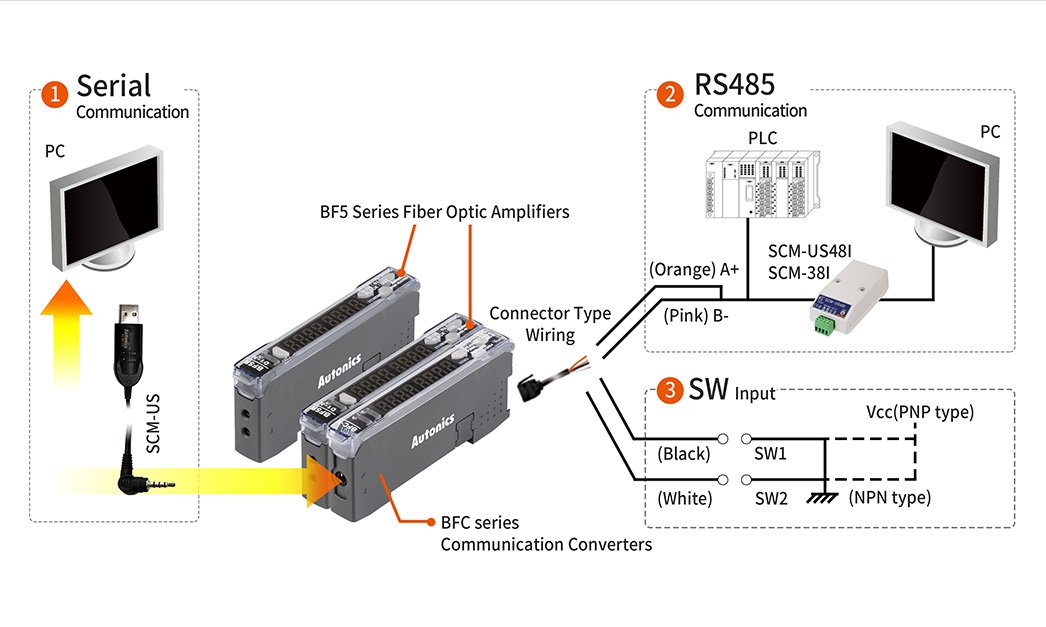

Communication with PCs, PLCs with BFC Communication Converters

The BFC series communication converters can be connected to the BF5 series amplifiers with the side connectors.
The communication converters allow users to remotely monitor and configure parameters from external devices such as PCs or PLCs.

  • Communication with PCs, PLCs with BFC Communication Converters

Applications

  • Hole Drilling Machines

    Hole Drilling Machines

    Graphic panels, fiber optic sensors, and proximity sensors are used on hole drilling machines.
