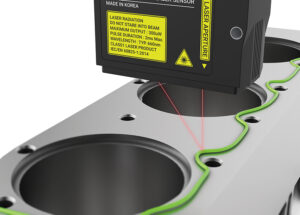

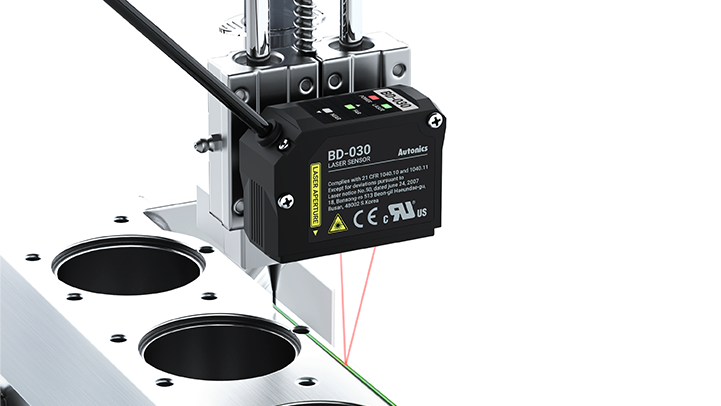

Accurate Displacement Measurement on Various Materials

The sensors can accurately detect various target material or color including black/white paper, stainless steel, rubber, PCB, etc.

Easy Configuration with Movement Average, Differential, and Median Filters

Movement average, differential, and median filters allow for accurate and stable correction in measurement values in the event of sudden changes from mechanical noise or other variables.

• • Median filter



    removes any sudden value changes.

• • Movement average filter



    averages the measured values to reduce the overall changes to the measurement values.

• Differential filter



  transmits the differential value between current and previous measured values. Used to measure sudden changes in value.

• Various Calculation Functions

  Supports various calculation functions (OFF, ADD-AB, SUB-AB, AVG)
  – OFF: independent measurement (calculation function not used)

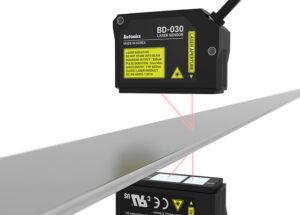

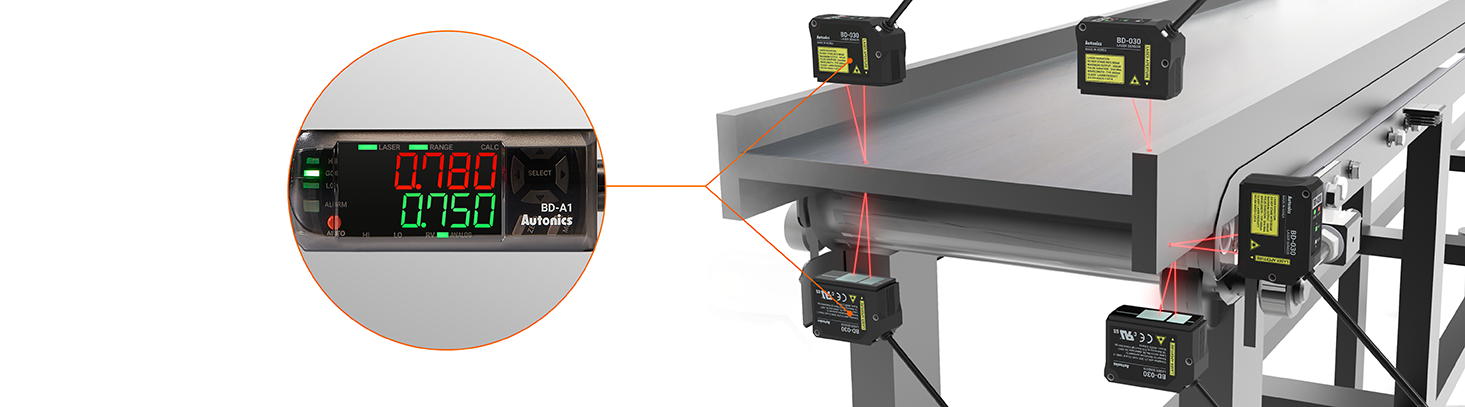

  – ADD-AB: Adds the measured values from sensor heads A/B (used to measure thickness)

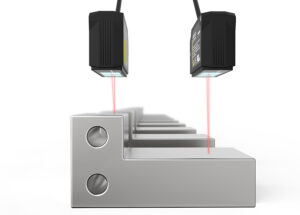

  – SUB-AB: Subtracts the measured values from sensor heads A/B (used to measure level difference/ disparity)

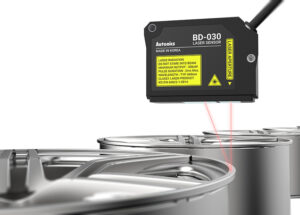

  – AVG: averages the measured values from all connected sensor heads (used to measure evenness)
  – Cannot use more than 2 calculation functions with interconnected sensor amplifier units

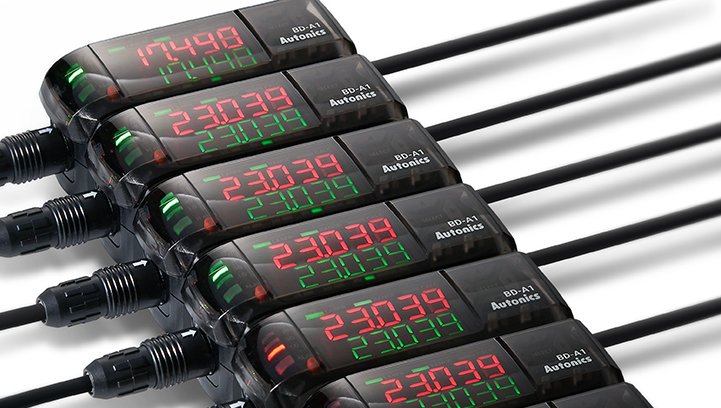

• • Interconnection of Sensor Amplifier Units and Mutual Interference Prevention

    Up to 8 sensor amplifier units can be interconnected. The channels for the amplifier units are automatically sorted when connected together. (Each sensor amplifier unit requires independent power supply)

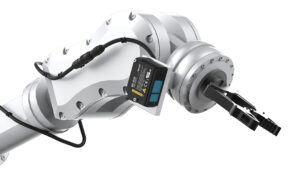

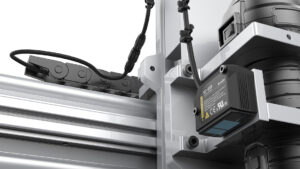

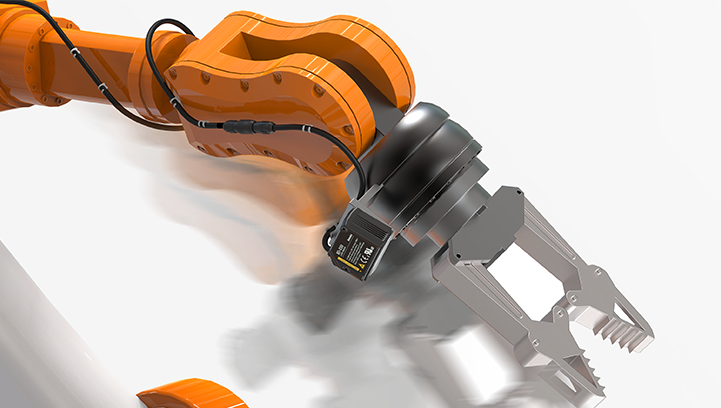

• Robot Type Extension Cables for Moving Applications (Sold Separately)

  1 m, 2 m, 5 m, 10 m cables are available for application in diverse environments without breaking.
