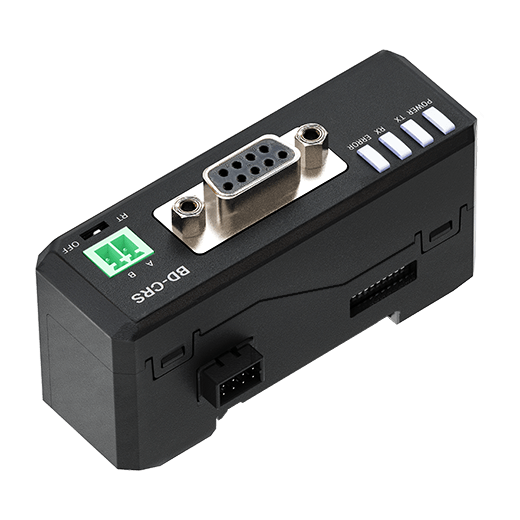

BD-C Series Communication Converter for Laser Displacement Sensors

BD-C Series Communication Converter for Laser Displacement Sensors

    The BD-C series communication converters allow RS232C/RS485 communication for BD series laser displacement sensors. The communication converters can be powered by the sensor amplifier unit by connecting the units using the side connector. The atDisplacement laser displacement sensor software allows users to batch parameter settings, monitor measured values and outputs in real-time, and set communication speed and addresses without connecting to host devices.

    certmarkcertmarkcertmarkcertmark
    laser displacement sensor communication converter RS232C RS485 parameter setting real-time monitoring
    Enquiry
    Categories: , , ,

    Main features

    • Supports both RS232C and RS485 communication in one device
      : Separate ports for RS232C and RS485
    • Connect up to 8 amplifier units
    • Can be powered directly by amplifier units without additional wiring
    • Support for dedicated device management software (atDisplacement)
      : Batch parameter settings with save/load function
      : Monitor measured values and outputs in real-time
    • Set communication speed and addresses using DIP switch without connecting to host devices

      • RS232C and RS485 Support



      • Connect Up to 8 Amplifier Units



      • Minimal Wiring



    • Dedicated Software

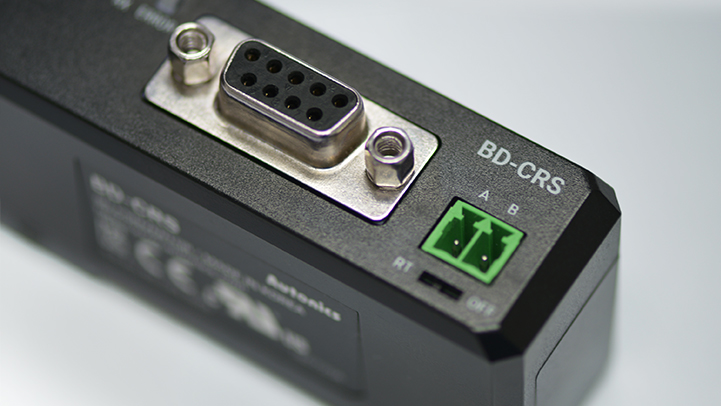

      • Supports both RS232C and RS485 Communication

        D-SUB (RS232C communication) and terminal (RS485 communication) ports are both available for independent or simultaneous communication.

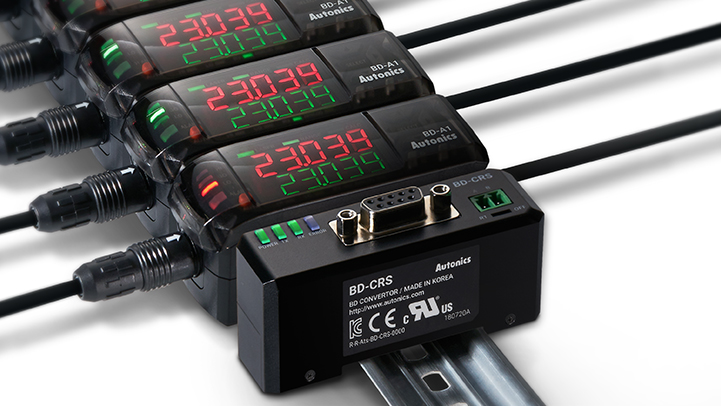

    • Directly Powered by Sensor Amplifier Units

      The communication converters can be powered by the sensor amplifier unit by connecting the units using the side connector without requiring additional wiring.

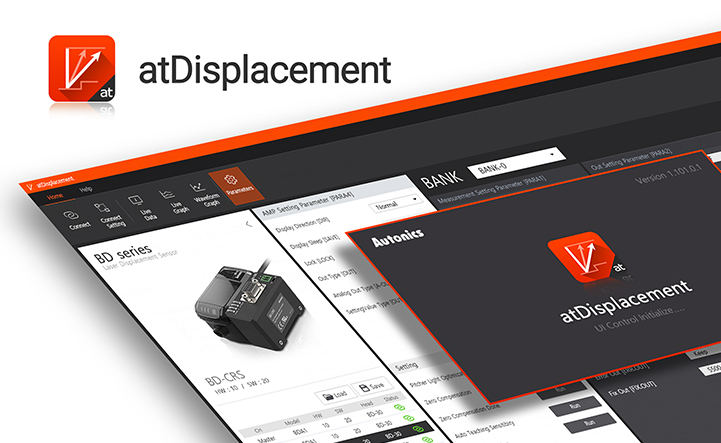

    • atDisplacement Dedicated Device Management Software Support

      When the communication converter is connected to a PC, the dedicated software atDisplacement can be used to set parameters for each sensor amplifier unit and measured values and output status can be monitored in real-time.
