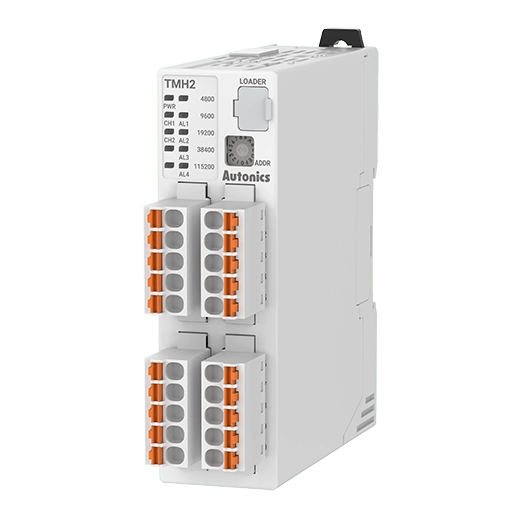

Autonics TMH Series

Modular Multi-Channel High Performance Temperature Controllers

The TMH series modular multi-channel high performance temperature controllers are used to expand and combine various control, communication, and option input/output modules. The TMH series control up to 2 or 4 channels of input/output simultaneously, with 50 ms high-speed sampling cycle and up to ±0.3% measurement accuracy. The TMH series provides efficient temperature control with simultaneous heating and cooling control function, current output or SSR drive output.

#multi-channel #modular temperature controller #simultaneous heating and cooling control #50ms high-speed sampling #±0.3% measurement accuracy #option modules #communication modules #high performance #plug/socket type #screw type #alarm output #DAQMaster #Ethernet communication #PLC ladder-less communication(RS422/RS485) #analog output #event modules #CT input

Enquiry

Common Features

Easy maintenance with detachable body and base terminal
Power supply and communication with expansion connectors (up to 32 units)
Screw/screwless connection type models
Terminal protection cover (sold separately)

TMH2/4 Series (Control Modules)

Multi-channel (2-channel/4-channel) input and output control
: Expandable up to 32 units (up to 128 channels)
50 ms high-speed sampling rate and up to ±0.3% measurement accuracy
Simultaneous heating and cooling control function and auto/manual control mode

TMHC (Communication Modules)
