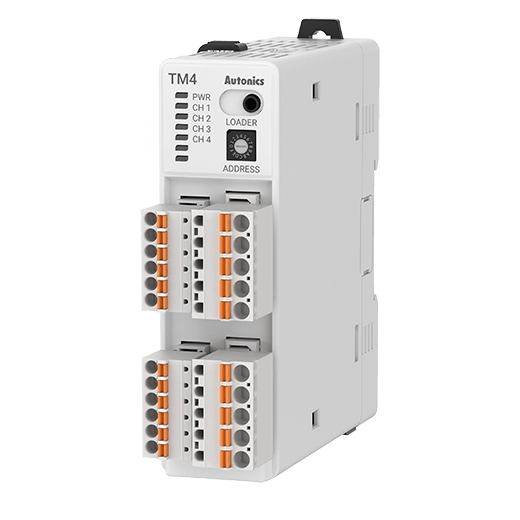

Autonics TM Series

Modular Multi-Channel PID Temperature Controllers

    The TM series modular type PID temperature controllers are capable of controlling up to 4 channels (TM4) or 2 channels (TM2) simultaneously. Using the expansion connectors, the TM series can be easily expanded to control up to 124/62 channels (TM4/TM2) without additional wiring for power or communication. The temperature controllers feature high-speed sampling cycles (TM4: 100 ms / TM2: 50 ms), RS485 communication support, and simultaneous heating and cooling control. Parameter configuration and status monitoring via PC is easy with the included DAQMaster software.

    #communication support    #expansion connectors     #high-speed sampling     #Modular Multi-Channel #simultaneous heating and cooling control      #RS485     #auto/manual control     #Heater disconnect alarm function     #temperature control     #expansion      #31 units     #Connector wiring      #DAQMaster

    Enquiry
    Categories: , , Brand:
    • Multi-channel (4-channel : TM4/2-channel : TM2) input and output control
    • Module connection and expansion with expansion connectors
      – Communication between modules
      – No additional power supply wiring
      – Expandable up to 31 units (124-channels/62-channels)
    • High-speed sampling cycle (4-channel : 100ms/2-channel : 50ms)
    • Simultaneous heating and cooling control function
    • Parameter configuration via PC (USB and RS485 communication)
      – DAQMaster software included (comprehensive device management software)
      – Parameter configuration without power supply or wiring using SCM-US
      Communication converter sold separately : SCM-WF48 (Wi-Fi to RS485  USB converter), SCM-US48I (USB to RS485 converter), SCM-38I (RS232C to RS485 converter), SCM-US (USB to serial converter)
    • Easy wiring and maintenance with various connectors : sensor input connector, control output connector, power/communication connector
    • RS485 Communication
      – Protocol : Modbus RTU or ASCII
      – Communication speed : Max. 115,200bps
    • Screwless push-in type connection for simple and easy connection
    • Isolated input channels (dielectric strength : 1000VAC)
    • Heater disconnect alarm function (CT input)
      Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
