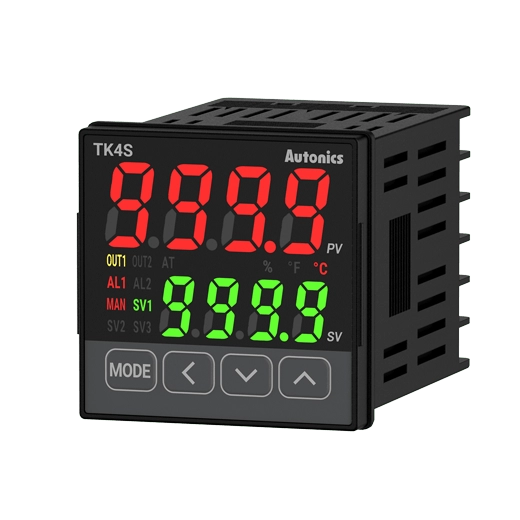

Autonics TK Series

High Performance PID Temperature Controllers

The TK series high performance PID temperature controllers feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control of any required application.

#automatic/manual control options #high-speed sampling cycle #simultaneous heating and cooling control #Switch between current output and SSR drive output

Enquiry

- New line-up : AC/DC low voltage type (except TK4N models)
- 50ms high-speed sampling rate and ±0.3% display accuracy
- High luminance LED display with large PV and SV characters
- Simultaneous heating and cooling control function
- Automatic/manual control option
- Switch between current output and SSR drive output
- SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
- Communication output models available : RS485 (Modbus RTU)
- Parameter configuration via PC (RS485 communication)
  – DAQMaster software included (comprehensive device management software)
  – Communication converter sold separately : SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
- User-friendly parameter features
  – Parameter mask : hide unnecessary or seldom used parameters

– User parameter group : group frequently used parameters for easy access and configuration

Various input types and temperature ranges
Heater disconnect alarm function (CT input)
– Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
SV preset function (up to 4 set values) using digital input terminals
Available in various DIN sizes : (48×24, 48×48, 72×72, 96×48, 48×96, 96×96mm)
Terminal protection cover sold separately : R◻A-COVER (except TK4N, TK4SP models)
