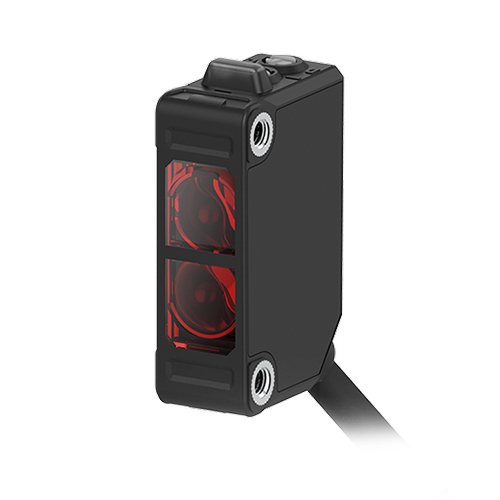

Compact Long Distance Photoelectric

SensorsThe BJX series compact photoelectric sensors feature high performance lens with long sensing distance up to 30 m. The sensors also offer excellent noise immunity and minimal influence from ambient light for accurate and reliable presence detection. Mutual interference prevention function allows tight adjacent installation of multiple sensors and MSR (mirror surface rejection) function allows detection of highly reflective targets.

High performance lens with long sensing distance

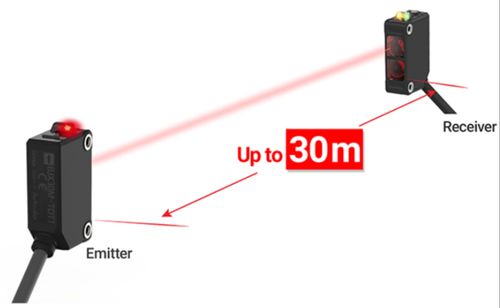

– Through-beam type: 30 m
– Diffuse reflective type: 1 m
– Retroreflective type: 3 m (MS-2A)

Compact size: W 20 x H 32 x L 11 mm

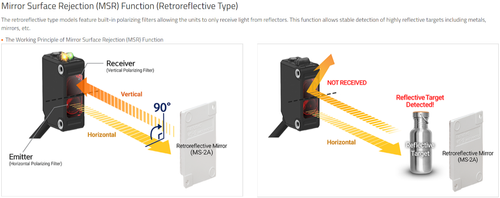

1.)M.S.R (Mirror Surface Rejection) function (retroreflective type)

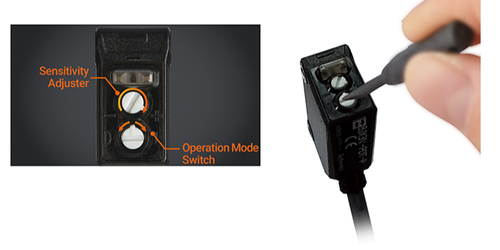

2.)Light ON/Dark ON operation mode switch

3.)Sensitivity adjuster

4.)Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit

5.)Mutual interference prevention function (except through-beam type)

6.)Excellent noise immunity and minimal influence from ambient light

7.)IP65 protection structure (IEC standard)
