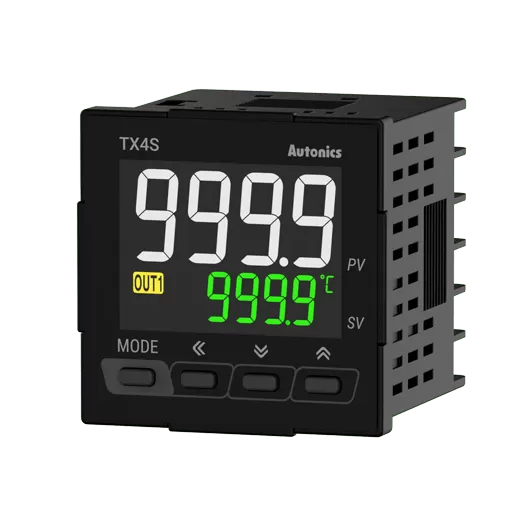

Autonics TX Series

LCD Display PID Temperature Controllers

The TX series temperature controllers feature easy-to-read LCD displays with large, 15.3 mm white PV characters. The 11-segment displays used for PV and SV are useful for displaying various alphanumeric characters and provide improved legibility. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The space-saving design with 45 mm depth allows easy installation in limited spaces. The TX series also offers various output options including current output, transmission output and RS485 communication output, for application in various environment settings.

#high-speed sampling #LCD Display #PID #temperature controllers #easy-to-read

Enquiry

50ms high-speed sampling rate and ±0.3% display accuracy
Large LCD display with easy-to-read white PV characters
Switch between current output and SSR drive output
SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
Communication output model available : RS485 (Modbus RTU)
Parameter configuration via PC (RS485 communication) : DAQMaster software included (comprehensive device management software)
Compact, space-saving design with 45mm depth : 30% rear-length size reduction compared to similar-sized (48×48mm) models from Autonics* Terminal protection cover sold separately : RSA-COVER
